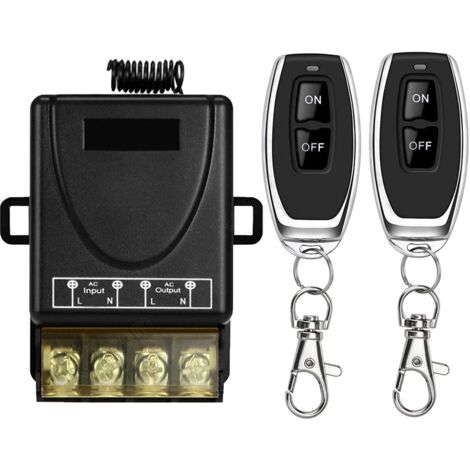

433Mhz High Power Wireless Remote Control Switch, AC 220V/240V/110V 30A RF Remote Control for Light, Water Pump, Household Appliances, Agricultural Irrigation

Name: 433Mhz High Power Wireless Remote Control Switch, AC 220V/240V/110V 30A RF Remote Control for Light, Water Pump, Household Appliances, Agricultural Irrigation
Brand: TINOR
SKU: Ti-T5584
Price: 11.49 GBP
Availability: InStock

~~£22.98~~

Of which environmental contribution £0.01 including VAT.

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Tinor-GB

Product information

Description

General description

433Mhz High Power Wireless Remote Control Switch is designed for controlling various household appliances, water pumps, and agricultural irrigation systems. It operates at AC 220V/240V/110V with a maximum load of 30A, ensuring reliable performance and versatility in different environments.

Technical specifications

Voltage: AC 85V~265V

Max Current: 30A

RF Frequency: 433MHz

Support Encoding: 1527 Learning Code

Receiving Sensitivity: > 97dBm

RF Working Mode: ASK Superheterodyne

Working Temperature: -30~+80°C

Receiving Range: More than 50 meters in open space

Quiescent Current: <5mA

Installation

Press the learning button on the receiver 3 times.

Wait for 3 seconds.

Press the "ON" button on the remote control.

Press the "OFF" button on the remote control.

Installation successful.

Usage

Press the "ON" button to turn on the relay.

Press the "OFF" button to turn off the relay.

Choose from 3 working modes: momentary, toggle, or latched mode.

Each receiver can store about 20 transmitters, and one transmitter can control multiple receivers.

Other information

Strong signal can pass through walls, floors, and doors, with a maximum range of 164 feet without obstacles.

The receiver features an antenna for enhanced signal reception.

High-quality relays can be used more than 100,000 times, ensuring long-term stability.

Suitable for various applications including homes, farms, factories, offices, laboratories, and supermarkets.

Features

Brand
TINOR
Colour
Black
Amperage
30 A
Material
Plastic
Type of electronic component
Sensors
ManoMano Reference
ME90353992
MMID
960206275410
Product code
Ti-T5584
EAN
9770750947184
