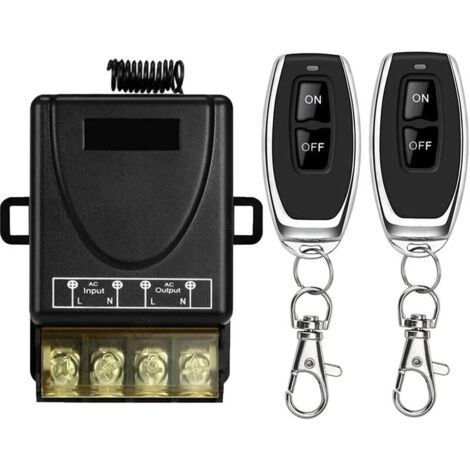

433Mhz High Power Wireless Remote Control Switch, AC 220V/240V/110V 30A RF Remote Control for Light, Water Pump, Household Appliances, Agricultural Irrigation

General Description

The 433 MHz RF wireless switch is designed to provide stable and reliable performance. It can remotely control various electrical appliances, with a maximum range of 50 meters in open space. Thanks to its high receiving sensitivity, this system can easily pass through walls, floors, and doors, ensuring effective control from any location.

Technical Specifications

Voltage: AC 85V ~ 265V

Maximum Current: 30A

RF Frequency: 433 MHz

Encoding: Learning Code 1527

Receiving Sensitivity: > 97 dBm

RF Working Mode: ASK Superheterodyne Wireless Receiving

Operating Temperature: -30 ~ +80 °C

Quiescent Current: < 5 mA

Compatibility and Accessories

Each receiver can store up to 20 transmitters, allowing a single transmitter to control multiple receivers. Ideal for use in various environments such as homes, offices, factories, etc.

Installation

Press the learning button on the receiver 3 times and wait 3 seconds.

Press the "ON" button on the remote control and wait 3 seconds.

Press the "OFF" button on the remote control to complete the installation.

Usage

The switch has 3 operating modes: momentary, toggle, and latched, allowing customization according to your needs. Press the "ON" button to turn the relay on and the "OFF" button to turn it off.

Other Information

This product uses high-quality relays that can be used more than 100,000 times, ensuring long-term durability and reliability.
