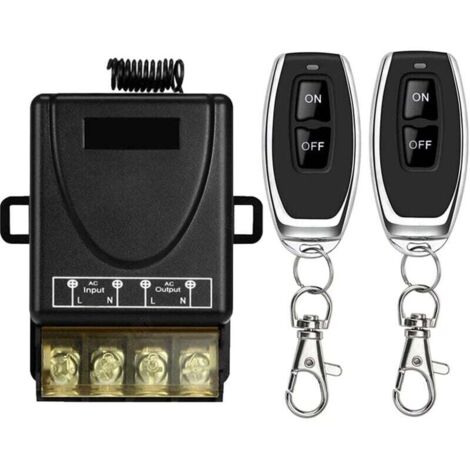

433Mhz Wireless High Power Remote Control Switch, AC 220V/240V/110V 30A RF Remote Control for Light, Water Pump, Household Appliances, Agricultural Irrigation

Product information

Description

General description

The 433Mhz RF wireless switch is designed to provide stable and reliable performance. It can remotely control various electrical appliances, with a maximum range of up to 50 meters in open space. Thanks to its high reception sensitivity, this system can easily pass through walls, floors, and doors, ensuring effective control from any location.

Technical specifications

Voltage: AC 85V~265V

Maximum Current: 30A

RF Frequency: 433MHz

Encoding: 1527 learning code

Receiving Sensitivity: > 97dBm

RF Working Mode: ASK Superheterodyne

Wireless Receiving Working Temperature: -30~+80°C

Quiescent Current: < 5mA

Compatibility and accessories

Each receiver can store up to 20 transmitters, allowing one transmitter to control multiple receivers.

Installation

Press the learning button on the receiver 3 times and wait 3 seconds.

Press the 'ON' button on the remote control and wait 3 seconds.

Press the 'OFF' button on the remote control to complete the installation.

Usage

The switch has 3 operating modes: momentary, toggle, and latched, allowing for customization according to your needs. Press the 'ON' button to turn the relay on and the 'OFF' button to turn it off.

Other information

This product uses high-quality relays that can be used more than 100,000 times, ensuring durability and reliability over time.

Features

Brand
COOCHEER
Colour
Black
Power source
Batteries
Amperage
30 A
Wireless communication protocol
RF 433/868 MHz
Maximum operating temperature
80 °C
Type of electronic component
Changeover switch
ManoMano Reference
ME95881890
MMID
772681381766
Product code
HD196P-101816
EAN
3773380835544
