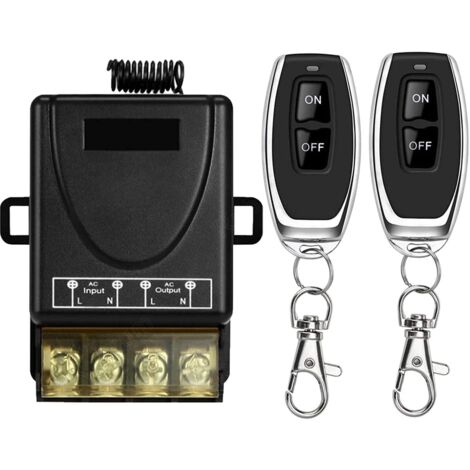

433Mhz Wireless High Power Remote Control Switch, AC 220V/240V/110V 30A RF Remote Control for Light, Water Pump, Household Appliances, Agricultural Irrigation-

【Unique Design】433Mhz RF Wireless Remote Control Switch. Stable and reliable performance, receiving sensitivity (> - 105dBm). Strong signal can pass through walls, floors, doors. It can pass through walls, floors and doors, control the receiver from any place within a reliable distance. The maximum range can reach 164 feet without obstacle.

【Easy to Use】: Extremely easy to set up and reset. There are 3 working modes (Momentary/Toggle/Latched mode) can be chosen. You can easily set it yourself according to your needs. The working mode of the product is adjustable. This item has already been set to Latched mode. And the "ON" button to turn on and the "OFF" button to turn off.

【High Sensitivity】 The receiver adopts a 30A relay. It can load large-power electrical appliances to ensure long-term stability control. Each receiver can store about 20 transmitters. And one transmitter can also control multiple receivers (the transmitter must match the receiver).

【Quality Assurance】 High-quality relays that can be used more than 100,000 times. Make this product more stable and reliable. The high-power terminals can withstand 30A current, so that this product can have a good effect even when the current is unstable. The receiver is suitable for 85V~240V voltage, it is more flexible to use

【Wide Application】The products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. You can remotely operate each device connected to the relay receiver via the remote control. such as lights, pumps, wireless security alarms, fans, lamps, ventilation devices, monitors, printers, fountains and other electrical equipment, etc.

【Secure System】 The chip code is EV1527 learning code, which is the most popular technology that makes the remote control system more stable.

【Strong Signal Reception】 There is an antenna on the receiver, so you can stretch it yourself to get stronger signal reception. The remote control distance can be up to 50 meters.

【More Flexibility】 Extremely easy to set up and reset. You can easily add additional wireless switches yourself according to your needs.

Product Parameters

AC 85V~265V 30Amp

Voltage: AC 85V~265V

Max Current: 30A

RF Frequency: 433MHz

Support Encoding: 1527 Learning Code

Receiving Sensitivity: > 97dbm

RF Working Mode: ASK Superheterodyne Wireless Receiving

Working Temperature: -30~+80

Receiving Range: Open space is more than 50 meters

Quiescent Current: <5MA

Latched Mode

Press the "ON" button, The relay will turn on; Press the "OFF" button, the relay will turn off.

Installation

Press the learning button (on the receiver) 3 times. Wait 3 seconds;

Press the "ON" button on the remote control. Wait 3 seconds.

Press the "OFF" button on the remote control. Success.
