General description

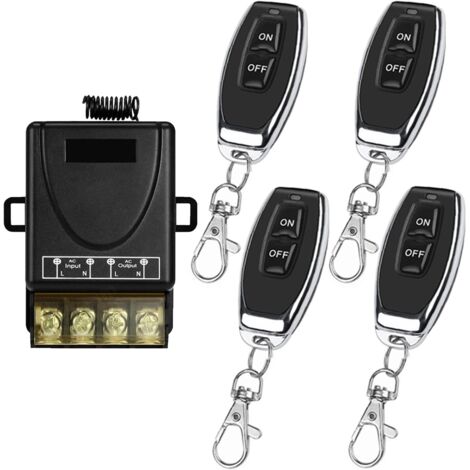

The 433MHz Wireless Remote Control Switch is designed for controlling various household appliances, including lights, water pumps, and security systems. It operates on a strong 433MHz RF signal, allowing for reliable communication through walls and obstacles, with a maximum range of up to 164 feet (50 meters) in open space. This versatile device is suitable for use in homes, farms, factories, offices, and laboratories.
Technical specifications
- Voltage: AC 85V ~ 265V
- Max current: 30A
- RF frequency: 433MHz
- Support encoding: 1527 learning code
- Sensitivity reception: > 97dBm
- RF working mode: ASK superhetodyne wireless reception
- Working temperature: -30°C to +80°C
- Standby current: < 5mA
Installation
- Press the learning button on the receiver three times and wait for 3 seconds.
- Press the “ON” button on the remote control and wait for 3 seconds.
- Press the “OFF” button on the remote control to complete the setup.
Usage
The remote control switch features three operating modes: momentary, toggle, and latched mode, allowing users to configure it according to their needs. The "ON" button activates the relay, while the "OFF" button deactivates it. Each receiver can store approximately 20 transmitters, and one transmitter can control multiple receivers.
