4340 EN24 H-Beam Connecting Rods Con Rods for Fiat Punto GT 1.4 1.6 Turbo 5.06"

Please Carefully check the Size of the Rods in Specific and Description

Why Choose us

1. TüV Certification Con Rods；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；

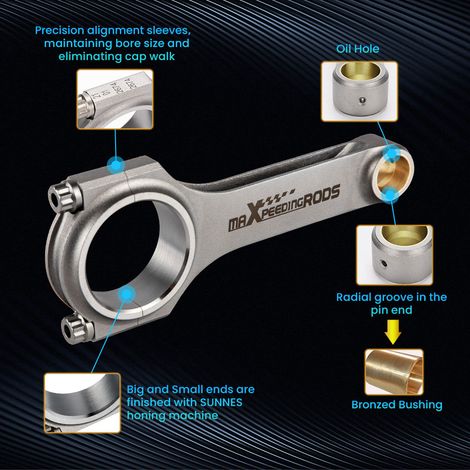

6.100% CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.100% X-rayed, sonic tested；
11.Custom Service.

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including Genuine ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Application

For Fiat Punto GT 1.4 1.6L Turbo

Dimensions

Center to center length: 128.52mm/5.06"
Big end diameter: 48.63mm/1.9145"
Small end diameter: 22mm/0.866"
Big end width: 25.40mm/1.0"
Small end width: 25.40mm/1.0"

Important note:

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
