49cc 2 Stroke Mini Engine Motor Kit, Air-Cooled Racing Engine for Pocket Bicycle Mini Off-Road Vehicle ATV

~~£89.99~~

£2Offered

To be applied on the payment page

Offer valid today only.

Sold by DENCRESTUK

Product information

Description

General description

Choose this high-performance 49cc 2 Stroke Mini Engine Motor Kit to enhance your vehicle's power. This engine kit is designed for instant acceleration, allowing you to experience thrilling speeds while maintaining low fuel consumption for an ideal balance between performance and economy.

Technical specifications

Engine Type: Single Cylinder, 2 Stroke, Air-cooled

Material: Aluminum

Color: Silver, Black

Ignition System: Electronic Ignition

Start Mode: Pull Rope Start

Displacement: 49.85CC

Max. Power: 1.9kw/7000rpm

Rated Power: 1.7kw/6000rpm

Continuous Power: 1.6kw/5500rpm

Overload Power: 1.83kw/6500rpm

No-load Speed: 12500rpm

Max. Torque: 2.7N.M/6500rpm

Horsepower: 3PS Min.

Fuel Consumption: ≤610g/kW.h

Spark Plug: L6T or MB6A

Spark Plug Gap: 0.5mm/0.02in

Bore * Stroke: Φ44*32.8mm/1.7*1.3in

Carburetor Type: H117B

Reduction Ratio: 1:1

Noise Level: 100.7dB (SPL); 116.9dB (SWL)

Fuel Mixture: 25:1 (Early); 30:1 (Later)

Fuel Tank Capacity: 1.2L/0.32gal

Fuel Tank Size: 22*12*13.5cm/8.7*4.7*5.3in

Engine Dimensions: 28.7*23*13cm/11.3*9.1*5.1in

Package Size: 35*20.5*23.5cm/13.8*8.1*9.3in

Net Weight: 4.55kg/10lbs

Gross Weight: 4.95kg/10.9lbs

Compatibility and accessories

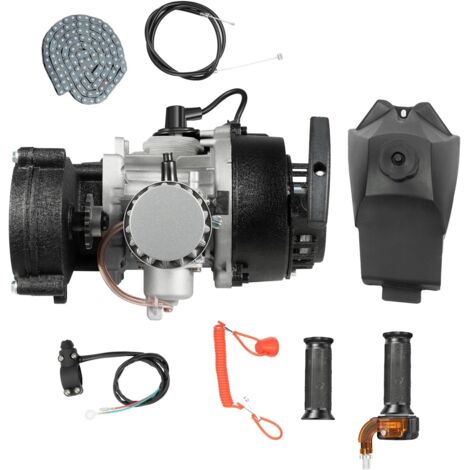

This engine kit is compatible with 49.85cc 2-stroke pocket bikes, mini dirt bikes, beach bikes, ATVs, or scooters. The package includes:

1* Engine

1* T8F Chain

1* Emergency Stop Switch

1* Throttle Grip

1* Left Grip Cover

1* Fuel Tank

1* Throttle Cable

Installation

It is strongly recommended that professionals carry out the installation to ensure proper setup and functionality.

Usage

For optimal performance, use professional 2-stroke engine oil and avoid using other types of engine oil to prevent damage to the engine.

Other information

Protective shipping with pearl cotton to prevent damage during transportation.

Please check the parameters carefully before making payment.

Allow for slight color differences due to lighting and a 1-3cm error due to manual measurement.

Features

Brand
CNCEST
Warranty
1 year(s)
Width
230 mm
Material
Aluminium
Weight
4550 g
Type of part for lower engine
Crankshaft
ManoMano Reference
ME94575276
MMID
349648370883
Product code
20211012415
EAN
756383488279
