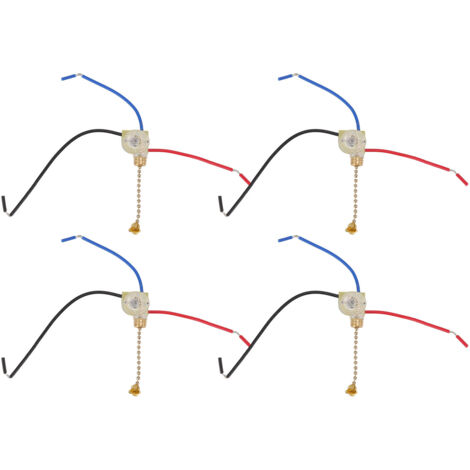

4Pcs Ceiling Fan Light Switch Replacement Lamp Pull Chain Switch 3 Wire Ceiling Fan Lamp Switch 250V 125V Gold
Sold by STUNACY
You may also like
Compare with similar items
Product information
Description
1、EASY OPERATION: 3 wire ceiling fan light switch is simple and easy to operate, simply drag the beaded chain to turn it on or off.
2、VOLTAGE RATING: Replacement lamp pull chain switch has a reserved 3 wire section and is rated for up to 3A at 250V or 6A at 125V.
3、SCOPE OF APPLICATION: Pull chain switch is compatible with most chandeliers, fans, lamps and wall sconces with pull chain switch control.
4、EASY INSTALLATION: Ceiling fan lamp switch is easy to install, requires no special operation and is safe to use.
5、LONG SERVICE LIFE: Ceiling fan light switch is made of plastic and copper. It is not easy to rust and has a long service life.
Item Type: Ceiling Fan Light Switch
Material: Plastic, Copper
Size: Head Diameter: Approx. 30mm / 1.2in, Head Thickness: Approx. 17mm / 0.7in, Exposed Pull Chain Length: Approx. 60mm / 2.4in
Voltage And Curraent: 250V 3A Or 125V 6A (AC)
Reserved Wire Section: 3 Wires
Installation Method:
Black Line Is The Common Line Connected To The Input Fire Wire, Red Is Connected To The First Light End, Blue Is Connected To The Second Light End
Switching Sequence: Pull The First Light On, Pull The Second Light On, Pull The Third Light And The Second Light On At The Same Time, Pull The Fourth Light All Off
Gross Weight: 62g/2.2oz
4 x Ceiling Fan Light Switch
Features
- BrandSTUNACY
- Length10 cm
- Width9 cm
- Height6 cm
- Voltage250 V
