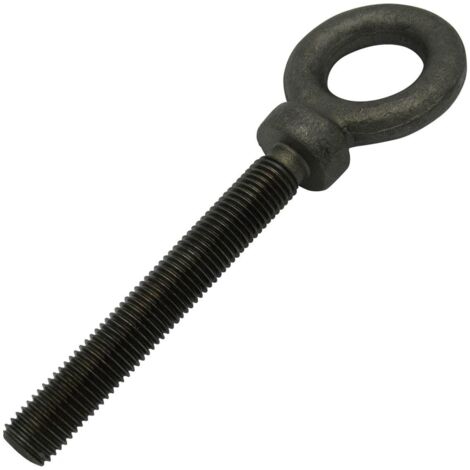

5/16" 0.15 Ton Self Colour Long Shank Dynamo Eyebolt - 150KG Imperial Eye Bolt

Name: 5/16" 0.15 Ton Self Colour Long Shank Dynamo Eyebolt - 150KG Imperial Eye Bolt
Brand: SECUREFIX DIRECT
SKU: SFIDEL08
Price: 4.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Long Shank Dynamo Eyebolt designed for various lifting applications. These eyebolts are popular in the lifting industry due to their tested and certified capabilities. They feature a long shank for situations requiring extended thread length and a larger eye diameter for accommodating bigger attachments. It is crucial that these eyebolts are used solely for straight lifts and operated by a competent individual.

Technical specifications

Thread Diameter: 5/16"

Safe Working Load (SWL): 0.15 Ton (150 KG)

Dimensions:

A: 19 mm

B: 42 mm

C: 22 mm

D: 7.7 mm

E: 8.5 mm

F: 25 mm

G: 10 mm

H: 103 mm

Pitch: 18

Other information

Test certificate included (sent via email).

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Material
Two-material
Colour
Multicolour
Weight
100 g
Type of bolt
Classic
ManoMano Reference
ME27129346
MMID
456665339455
Product code
SFIDEL08
EAN
600988494084
