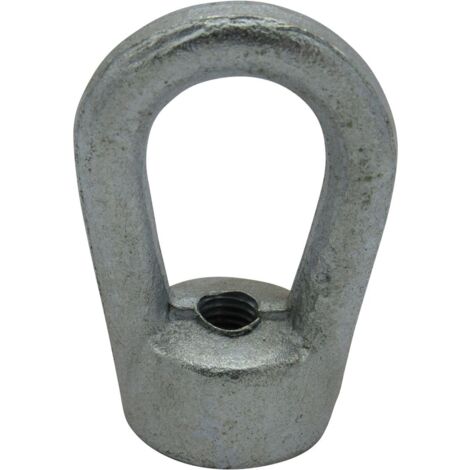

5/8'' UNC 1.01 Ton Zinc Plated Bow Nut - Lifting Gear Fasteners Bownut Eyebolt

Name: 5/8'' UNC 1.01 Ton Zinc Plated Bow Nut - Lifting Gear Fasteners Bownut Eyebolt
Brand: SECUREFIX DIRECT
SKU: SFIBOW16UNC
Price: 6 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

5/8'' UNC Zinc Plated Bow Nut with a safe working load of 1.01 Ton (1001KG). These bow nuts are widely used in the lifting industry due to their reliability and certification for lifting applications. They are designed for vertical lifts only and do not have a weld at the top of the thread.

Technical specifications

Conforms To: BS 3974

Finish: Zinc Plated

Safe Working Load: 1.01 Ton (1001KG)

Product Codes and Dimensions:

SFBOW08: A (7.7 MM), B (25 MM), C (11.7 MM), D (31 MM), E (16.1 MM), F (40 MM), G (16.7 MM), Thread Pitch (1.25)

SFBOW10: A (9.7 MM), B (24.7 MM), C (11.7 MM), D (30 MM), E (18.2 MM), F (40.4 MM), G (17.6 MM), Thread Pitch (1.5)

SFBOW12: A (11.8 MM), B (28.5 MM), C (13.2 MM), D (35.2 MM), E (15.7 MM), F (46.4 MM), G (20 MM), Thread Pitch (1.75)

SFBOW16: A (15.1 MM), B (28.6 MM), C (12.8 MM), D (36.1 MM), E (17.5 MM), F (46.7 MM), G (19.6 MM), Thread Pitch (2.00)

SFIBOW16UNC: A (14.5 MM), B (29.4 MM), C (12.7 MM), D (39.8 MM), E (19.3 MM), F (43.8 MM), G (20 MM), Threads Per Inch (11)

SFBOW20: A (7 MM), B (38 MM), C (14 MM), D (45 MM), E (24 MM), F (64 MM), G (24 MM), Thread Pitch (2.50)

SFBOW24: A (21.5 MM), B (47 MM), C (18 MM), D (54 MM), E (31 MM), F (77.5 MM), G (26.5 MM), Thread Pitch (3.00)

SFBOW30: A (28.8 MM), B (73.4 MM), C (25.8 MM), D (67.6 MM), E (31.1 MM), F (94 MM), G (39 MM), Thread Pitch (3.50)

SFBOW36: A (34.5 MM), B (74.7 MM), C (28 MM), D (67.8 MM), E (29.3 MM), F (97.5 MM), G (39 MM), Thread Pitch (4.00)

Other information

Test Certificate included (sent via email)

Please note: The safe working load is for vertical lift only

Please note: There is no weld at the top of the thread

Please note: A huge variety of lifting equipment is available

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Material
Zinc
