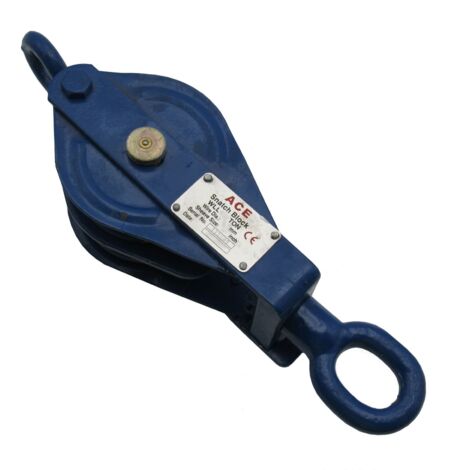

5 Ton 250MM Double Sheave Snatch Block With Swivel Eye Blue Painted - 22MM Wire Rope Safety Lifting

Product information

Description

General description

Pulley blocks are essential tools used for various lifting and towing applications. This 5 Ton Double Sheave Snatch Block features a swivel eye and is designed for use with 22MM wire rope. The block includes a built-in becket and a side gate that allows for easy rope installation without the need to thread the entire length of rope.

Technical specifications

  • Safe Working Load: 5 Ton
  • Suits Wire Rope: 22MM
  • Finish: Blue Painted
  • Factor of Safety: 4:1
  • Product Code: SFSNBED250
  • Dimensions:
  • A: 720 MM
  • B: 250 MM
  • C: 205 MM
  • D: 27.5 MM
  • E: 270 MM
  • F: 73.5 MM
  • G: 49 MM
  • Other information

  • Conforms to: BS EN 13157: 2004 + A1: 2009
  • Test Certificate included (sent via email)
  • Features

    • Brand
      SECUREFIX DIRECT
    • Maximum load
      5000 kg
    • Weight
      100 g
    • Width
      250 mm
    • Material
      Two-material
    • ManoMano Reference
      ME27141140
    • MMID
      195158127261
    • Product code
      SFSNBED250
    • EAN
      0600988481633
