500 Pcs Solderable Electrical Terminals with Heat Shrink Tubing, Maidodo Heat Shrinkable Butt-to-Butt Seal Insulated Waterproof Electrical Connectors for Marine, Automotive, and Copper

Product Description

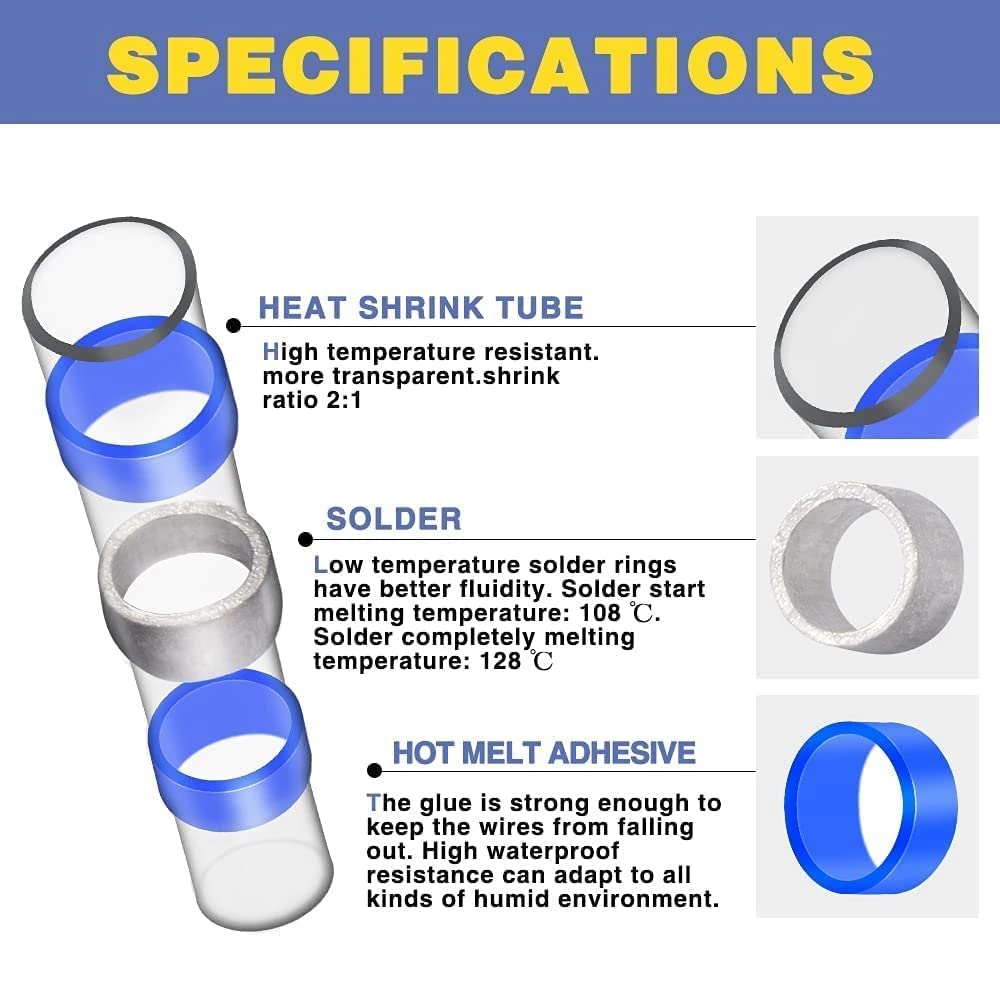

Temperature Specifications
Minimum Melting Temperature: 138°C
Minimum Compression Temperature: 80°C
Operating Temperature: -55°C to -125°C
Compression Temperature> 160°C
Product Details
Brand: Maidodo
Material: PE, Solder
Product Name: Heat Shrinkable Solder Sleeve
Max Voltage: 600V
Material: Polyolefin
Shrink Ratio: 2:1
Dielectric Strength: 1KW
Protection Rating: IP67
Package Includes:
200 x Red Heat Shrink Connectors
180 x Blue Heat Shrink Connectors
80 x White Heat Shrink Connectors
40 x Yellow Heat Shrink Connectors
Features:
● The design, with polyolefin tubing on the outside and hot melt adhesive on the inside, creates a durable, watertight seal between the wire and the connector.
● The watertight connectors prevent corrosion even in the harshest environments Humid.
Feature:
● The transparent sleeve of the butt connectors provides visual inspection. --- You can monitor the operating temperature and heating time.
● Easy identification: different colors for different connector sizes.
● Can be perfectly used in marine and automotive applications.
Feature:
● Solder-and-seal connectors allow you to use them in hard-to-reach environments or confined spaces. Since no crimping is required, you simply position the stripped wires in the solder sleeve and apply heat to complete the connection. An easy one-step connection of insulated and sealed wires.
Features:
● Insulation protection: used to seal wire connections, prevent electrical leakage, and protect circuits from rodent damage.
● The solder ring, when heated, melts and flows into the wire connection, which

effectively prevents the connection from breaking.

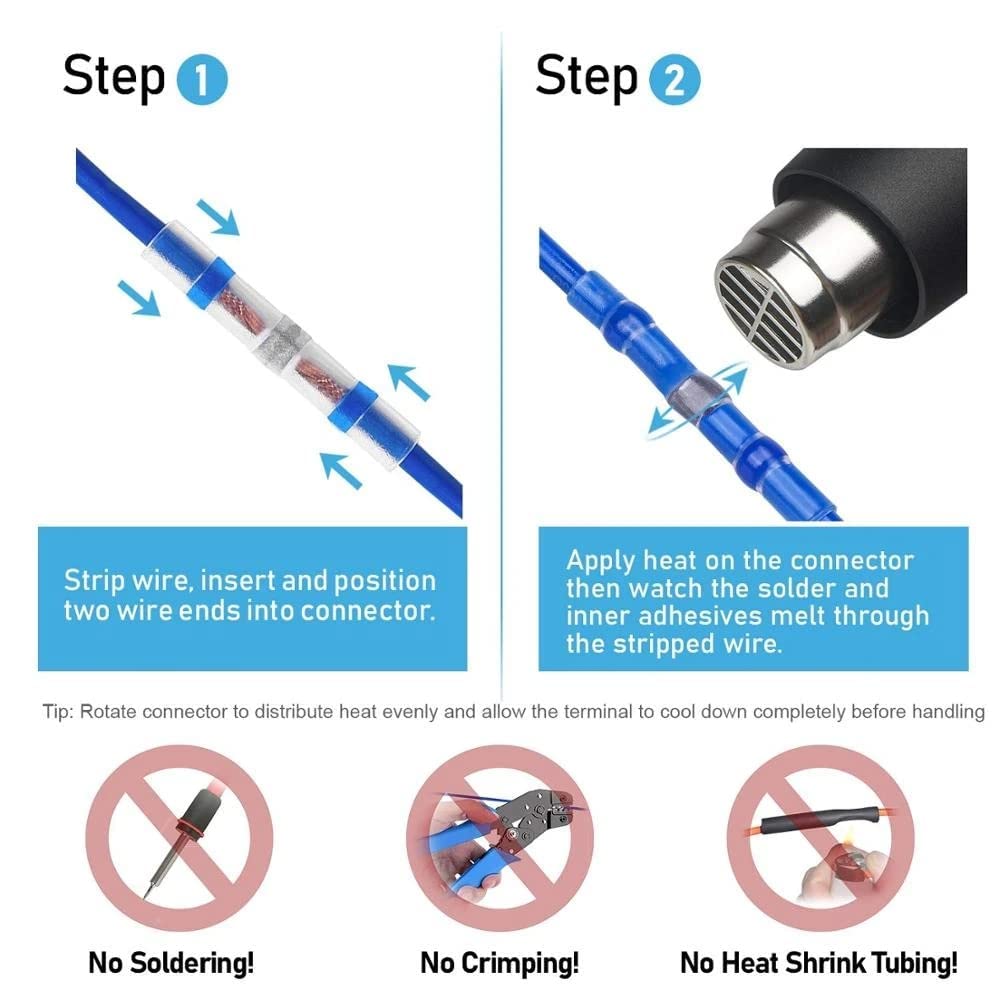

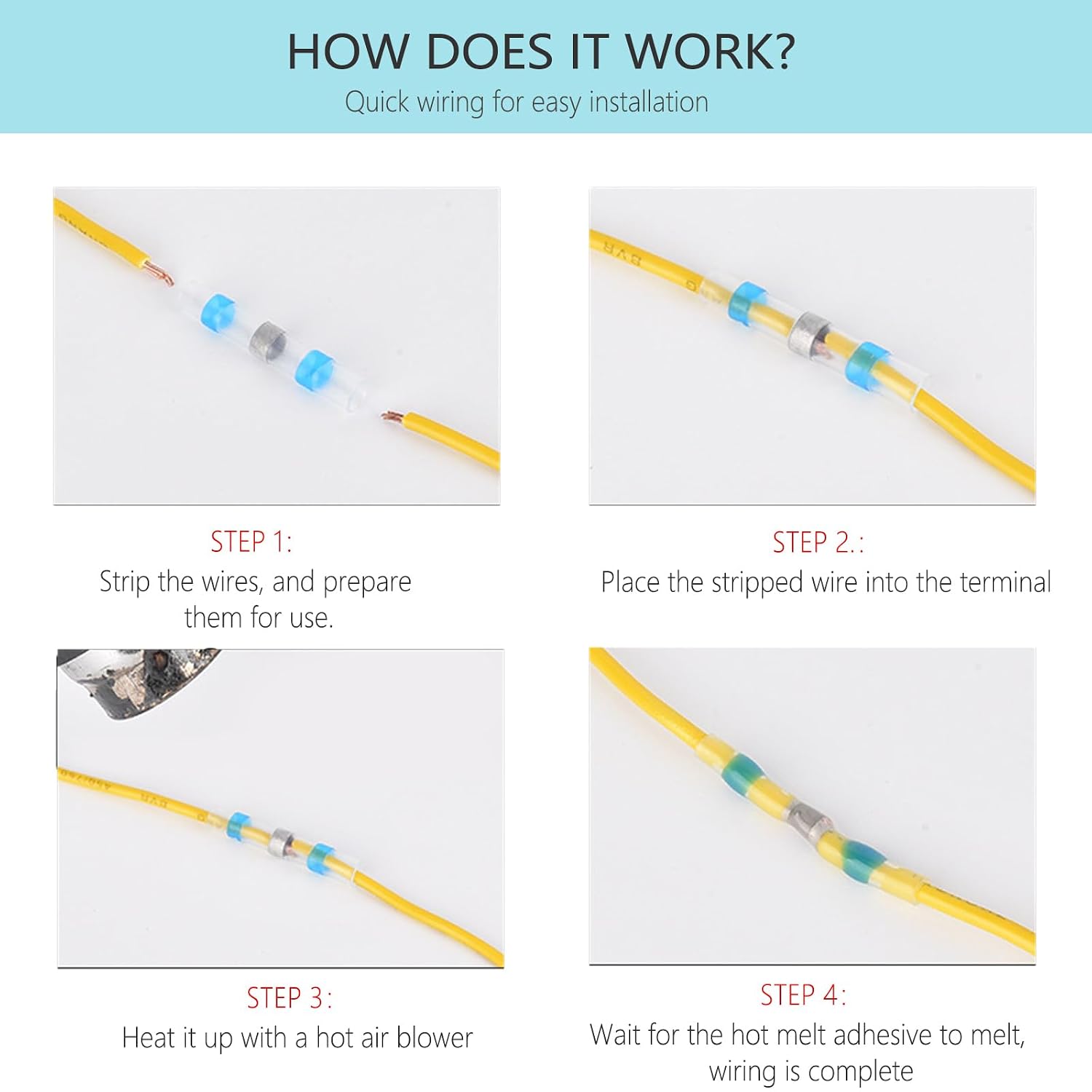

How to use:
1. Pass a wire through the butt connector tube of the appropriate size, properly connect and treat the wires, and move the connector so that the solder ring section is aligned with the wire connection;
2. Heat both ends of the tube to using a heat gun so they shrink. The sealing rings, when heated, become watertight;
How to use:
3. Heat the solder ring with a heat gun until the ring melts and penetrates the wire connection;
Warning: Heat the section of the heat-shrink tubing until it shrinks tightly around the wires; overheating will completely melt the heat-shrink tubing. The solder ring must be thoroughly heated to penetrate the wire connection.
------ Providing you with qualified terminals and meeting your needs in a variety of wiring projects
Whether you are working on your boat, vehicle, home, or scientific project, our solder connectors and heat-shrinkable gaskets will ensure a strong solder joint, increased current flow, and watertight connections every time.~
