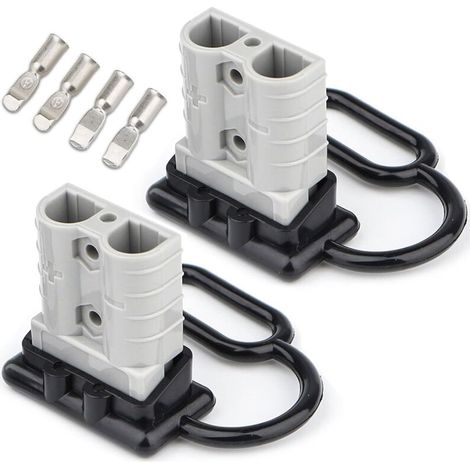

50A 6-10 Gauge Battery Connector Plug Pair Anderson Connector Battery Quick Connect Connector Plug
Of which environmental contribution £0.10 including VAT.
Sold by Cuizi
You may also like
![[NEVER USED] Car Battery Cut Off Kill Switch, 12/24V, 500A max Isolator Switch Automotive Emergency Switch for Car, Battery Circuit Breaker Truck, Boat, Vehicles](https://cdn.manomano.com/pim-media/images/medium/71fb3ec1493030c0aa17db5d279ec00ffec7205b.jpg)
Compare with similar items
Product information
Description
General description These 50A 6-10 Gauge Battery Connector Plug Pair Anderson Connectors are designed for quick and easy connections for winches and other electrical devices. They fit 6-10 gauge wires and support a voltage range of 12-36V, making them versatile for various applications. Technical specifications Rated Current: 50A Rated Voltage: 600V Contact Material: Copper, Silver-Plated Contact Barrel Wire Size: 6/8/10/12 AWG Maximum Wire Insulation Diameter: 0.44 inch (11.2 mm) Contact Resistance AVG: 200 micro-ohm Average contact resistance: 0.05 MΩ Test Voltage: 2200 V (DC) Insulation Resistance: 500 MΩ No Load (contact/disconnect cycles): 10,000 Under Load (Hot Plug 250 cycles 120V): 50A Average Unmating Force: 53N Enclosure Material Flammability Rating: UL94 V-0 Operating Temperature Range: -20° to 125° Installation To install, simply insert the wire into the terminal pins and solder or clamp them. Then slide the pins into the back of the plug and lock them in place to complete the installation. Usage These connectors allow for quick connection and disconnection, making them ideal for use with winches and other electrical devices. Other information Package includes: 2 pieces Power connectors, 4 pieces Pin terminals, 2 pieces Rubber caps
Features
- BrandOTHERS
- Pcs per pack1
- Terminal lug adapter onlyNo
- Height350 mm
- Width150 mm
- Length150 mm
- MaterialCopper
- Number of terminals2
- Weight2000 g
- Terminal PolarityPair
- Voltage10 V
- ManoMano ReferenceME213169977
- MMID213244690953
- Product codeBT-UK2025YS-14592
- EAN9034355184284
