55 Ton Bow Shackle With Screw Pin - Lifting 55000KG 2.1/2" x 2.3/4"

Name: 55 Ton Bow Shackle With Screw Pin - Lifting 55000KG 2.1/2" x 2.3/4"
Brand: SECUREFIX DIRECT
SKU: SFUSSPB55
Price: 199.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

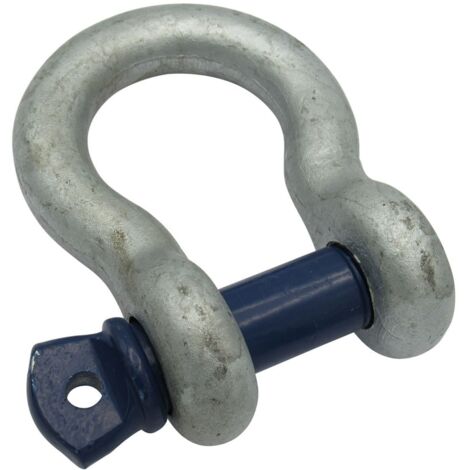

55 Ton Bow Shackle with Screw Pin is designed for heavy lifting applications, capable of supporting a safe working load of 55 tonnes (55000 kg). Manufactured from drop-forged steel, this shackle features a hot-dipped galvanized body and a painted pin, ensuring durability and resistance to corrosion. With a high safety factor of 5:1, it provides optimum protection during use.

Technical specifications

Product Code: SFUSSPB55

Product Weight: 41 kg

Safe Working Load: 55 Tonnes

Body Finish: Hot Dipped Galvanised

Pin Finish: Painted

Safety Factor: 5:1

Conforms to: BS EN 13889: 2003 + A1: 2008

Dimensions: A: 64 mm, B: 69 mm, C: 105 mm, D: 150 mm, E: 265 mm, F: 182 mm, G: 91 mm

Other information

Test Certificate Supplied (Sent Via Email)

*Colour might vary from image*

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Steel
Pcs per pack
1
Warranty
1 year(s)
