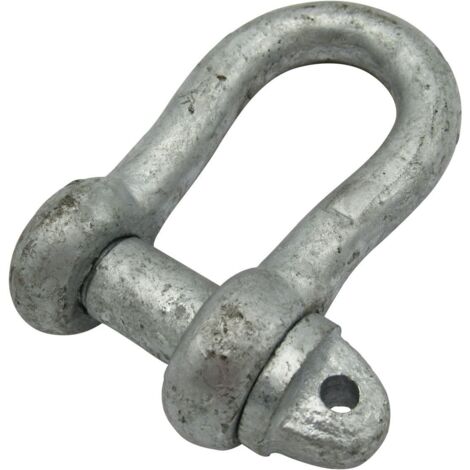

7 Ton Galvanised Small Dee Shackle With Screw Pin - BS3032 7000KG Galv Lifting Towing Certified

Sold by SecureFix Direct

You may also like

8mm STAINLESS STEEL 316 (A4) Long D shackle

8mm STAINLESS STEEL 316 (A4) Long D shackle

1
10mm STAINLESS STEEL 316 (A4) Long D shackle

10mm STAINLESS STEEL 316 (A4) Long D shackle

1
12mm STAINLESS STEEL 316 (A4) D shackle

12mm STAINLESS STEEL 316 (A4) D shackle

1
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free delivery
Stainless Steel D Shackle with Allen Screw Head 6MM (Dee Rigging Flush Marine)SECUREFIX DIRECT

Stainless Steel D Shackle with Allen Screw Head 6MM (Dee Rigging Flush Marine)

Free delivery
Stainless Steel Ring Eye Bolt 6MM (Eyebolt Ringbolt Long Shank Marine Boat)SECUREFIX DIRECT

Stainless Steel Ring Eye Bolt 6MM (Eyebolt Ringbolt Long Shank Marine Boat)

Free delivery
Swivel Snap Shackle Stainless Steel 70MM (Hook Karabiner Quick Release Marine)SECUREFIX DIRECT

Swivel Snap Shackle Stainless Steel 70MM (Hook Karabiner Quick Release Marine)

Free delivery
Long D Shackle Stainless Steel 8MM (Marine Boat Rigging Sails Halyards Dee)SECUREFIX DIRECT

Long D Shackle Stainless Steel 8MM (Marine Boat Rigging Sails Halyards Dee)

Free delivery
Fixed Snap Shackle Stainless Steel 70MM (Marine Grade 316)SECUREFIX DIRECT

Fixed Snap Shackle Stainless Steel 70MM (Marine Grade 316)

Free delivery
X2 0.5 Ton Self Colour Large Dee Shackles With Screw Pin - 500KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.5 Ton Self Colour Large Dee Shackles With Screw Pin - 500KG D High Tensile Lifting Towing

Free delivery
Stainless Steel Ring Eye Bolt 10MM (Eyebolt Ringbolt Long Shank Marine Boat)SECUREFIX DIRECT

Stainless Steel Ring Eye Bolt 10MM (Eyebolt Ringbolt Long Shank Marine Boat)

Free delivery
M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MMSECUREFIX DIRECT
#1 in sales

M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MM

Free delivery
Standard Galvanised Canal Windlass - Boat Handle Lock Key Waterways River Trust Double RotatingSECUREFIX DIRECT
#1 in sales

Standard Galvanised Canal Windlass - Boat Handle Lock Key Waterways River Trust Double Rotating

1
Free delivery
2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing TestedSECUREFIX DIRECT

2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing Tested

Free delivery
4.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 4750KG Lifting Towing TestedSECUREFIX DIRECT

4.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 4750KG Lifting Towing Tested

Free delivery
7.25 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 7250KG Lifting Towing TestedSECUREFIX DIRECT

7.25 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 7250KG Lifting Towing Tested

Free delivery
13.5 Ton Dee Shackle with Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"SECUREFIX DIRECT

13.5 Ton Dee Shackle with Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"

Free delivery
Safety Pin Bow Shackle 150 Ton (Lifting Galvanised Large 150000KG)SECUREFIX DIRECT

Safety Pin Bow Shackle 150 Ton (Lifting Galvanised Large 150000KG)

Free delivery
Porthole Boat Window Oval (Ship Marine Narrowboat Yacht Port Hole)SECUREFIX DIRECT

Porthole Boat Window Oval (Ship Marine Narrowboat Yacht Port Hole)

Free delivery
Galvanised Straining Rigging Screw Eye Jaw 16MM (5/8") (Closed Body Turnbuckle Wire Rope Tensioner)SECUREFIX DIRECT

Galvanised Straining Rigging Screw Eye Jaw 16MM (5/8") (Closed Body Turnbuckle Wire Rope Tensioner)

Free delivery

Compare with similar items

Product information

Description

General description

7 Ton Galvanised Small Dee Shackle with Screw Pin, certified to British Standard BS 3032, is designed for lifting and towing applications. Manufactured from high tensile steel and finished with galvanisation, this shackle ensures durability and safety with a safe working load of 7 tons and a safety factor of 5:1.

Technical specifications

  • Safe Working Load: 7 Ton
  • Pin Type: Screw
  • Manufactured from: High Tensile Steel
  • Finish: Galvanised
  • Safety Factor: 5:1
  • Product Codes and Dimensions:
  • BSSDG0.3: A (6.8 mm), B (9.2 mm), C (24 mm), D (9.5 mm), E (18.5 mm)
  • BSSDG0.6: A (9.9 mm), B (12 mm), C (36.5 mm), D (16 mm), E (24 mm)
  • BSSDG1: A (13 mm), B (15.5 mm), C (48.5 mm), D (22 mm), E (32.5 mm)
  • BSSDG1.75: A (16 mm), B (19 mm), C (55.5 mm), D (26 mm), E (37 mm)
  • BSSDG2.5: A (18.5 mm), B (22 mm), C (72.5 mm), D (32 mm), E (43.5 mm)
  • BSSDG3.5: A (22 mm), B (25.5 mm), C (83.5 mm), D (35 mm), E (51 mm)
  • BSSDG4.5: A (24 mm), B (28.5 mm), C (86.5 mm), D (38 mm), E (56 mm)
  • BSSDG5.5: A (27.5 mm), B (31.5 mm), C (106 mm), D (42.5 mm), E (63 mm)
  • BSSDG7: A (31.5 mm), B (35 mm), C (118.5 mm), D (47 mm), E (69 mm)
  • BSSDG8: A (34.5 mm), B (41 mm), C (130 mm), D (54.5 mm), E (76.5 mm)
  • BSSDG10.75: A (37 mm), B (43 mm), C (138 mm), D (59 mm), E (87 mm)

    • Other information

  • Test Certificate Supplied (Sent Via Email)
  • Please Note: A huge variety of lifting equipment is available.

    • Features

    • Brand
      SECUREFIX DIRECT
    • Weight
      100 g
    • Material
      Steel
    • Maximum load
      7000 kg
    • Pcs per pack
      1
