– 5.5KW Frequency Converter – AC 380V to 0-380V – 13A – RS485 technology for synchronous control – Applications: fans, pumps

General Description

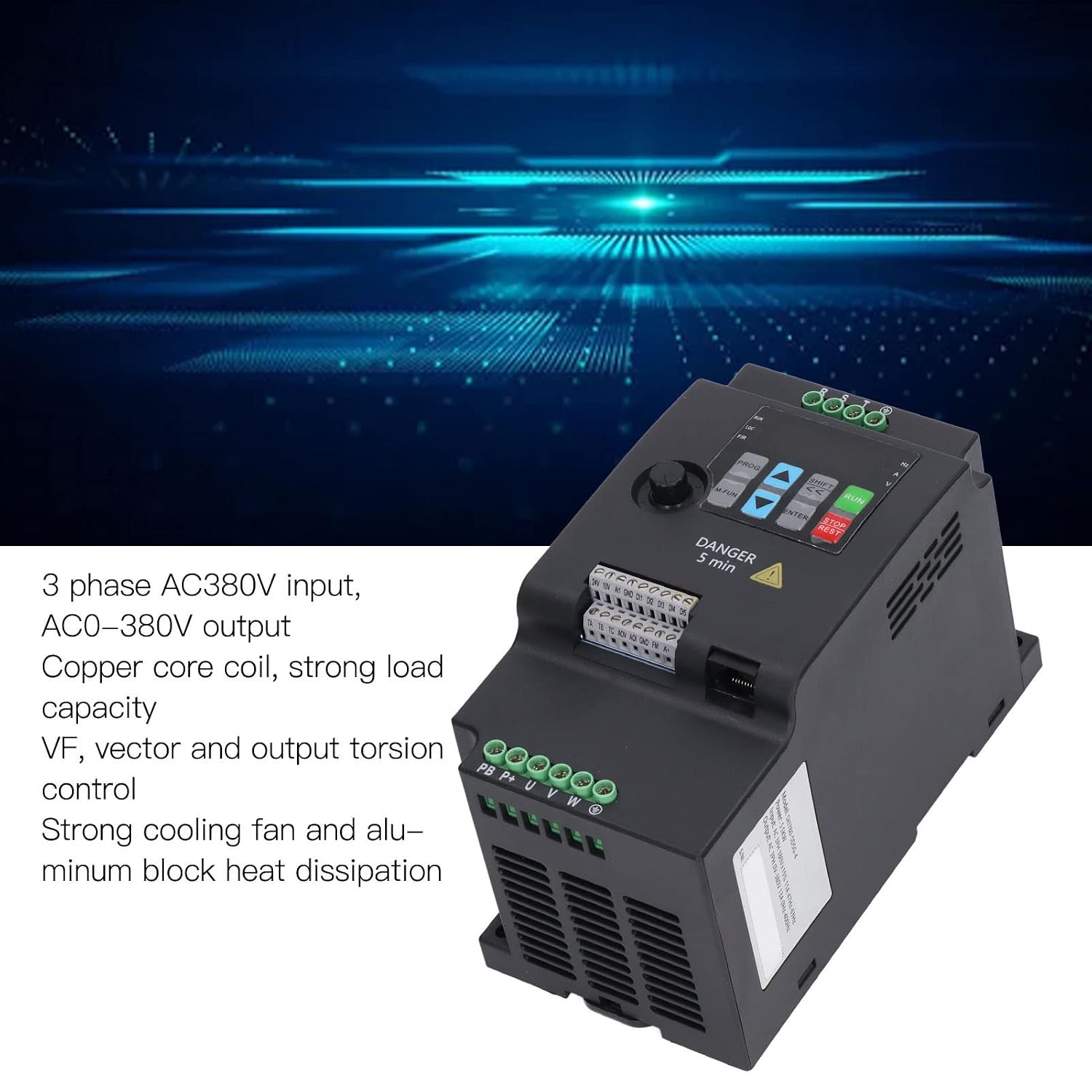

The 5.5KW frequency inverter is a motor control device designed to transform a 380V AC three-phase power supply into a variable output from 0 to 380V. It is equipped with a high-quality copper coil, ensuring high resistance and load capacity, as well as stable and reliable performance. This variable frequency drive is ideal for a variety of applications such as fans, pumps, and automatic machine tools.

Technical Specifications

• Item Type: Variable Frequency Drive
• Material: PC, Aluminum
• Model: SKI780 5D5G 4
• Applicable Motor: 5.5 kW (7.5 HP)
• Input: AC3PH 380V±15%, 15A, 47Hz-63Hz
• Output: AC3PH 0V-380V, 13A, 0Hz-400Hz
• Protection Class: IP20
• Installation Height: Up to 1000 meters (3280 feet) above sea level
• Operating Ambient Temperature: 0-40℃ (32-104℉)
• Storage Temperature: -20-55℃ (-4-131℉)
• Air Humidity: 5% to 85% during operation, non-condensing and non-freezing; 5%-95% during storage

Compatibility and Accessories

• 1 Frequency Converter
• 1 User Manual

Installation

Pay attention to electrical safety during installation and use.

Operation

The frequency inverter is designed for multiple control with a speed potentiometer and an external panel, allowing for integrated synchronous and proportional control, with 6 speed control modes. It also features an integrated RS485 communication interface for a stable connection with less interference.
