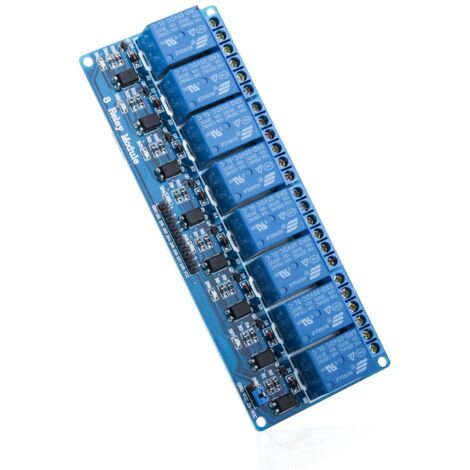

5V DC 8-Channel Relay Module with Optocoupler for Mega 1280 DSP Arm PIC AVR STM32 Raspberry Pi
Recommended Price
You may also like
Bosch GCY 42 Professional Bluetooth Low Energy Connectivity Module (Model 1600A016NH)
433.92 MHz Universal Wireless Copy Remote Control Key Fob RF Transmitter for Cloning Garage Door Opener 433 MHz Duplicator
CAME TOP Sport TOPD4REN remote control, dual frequency 433/868 MHz, rolling code 806TS-0290
Remote control for TOP432EV, pack of 10. Fixed code frequency 433.92 MHz
Compare with similar items
Product information
Description
8-channel 5V DC relay interface board. Each channel requires a control current of 70mA; equipped with relays capable of handling high current. 230V AC 10A, 30V DC 10A
Each relay has one normally open and one normally closed contact. Can be selected by a jumper and connected to +1 TTL or ground.
With power indicator; each of the 8 channels has a status indicator. Integrated freewheeling diode to counteract coil winding.
Standard interface that can be directly controlled by a microcontroller (8051, AVR, PIC, DSP, ARM, MSP430, TTL logic).
The 8 channels are optically isolated, safe, reliable, and interference-free.
Widely used for all MCU controls, in the industrial sector, PLC controls, home automation with 8-Channel Relay Module. 8-channel DC 5V relay module with optocoupler. • Available switching capacity of 10A despite the small size design for high-density PC board mounting technology. • UL, TUV recognized. • Plastic material selected for high temperature and better chemical solution performance. • Sealed types available. • Simple magnetic relay circuit to meet low mass production costs. • Widely used for home appliances, office machinery, audio equipment, automotive, etc. (TV receiver remote control, monitor display, high current audio equipment applications). • Product Description: • Product Name: 8-Channel Relay Module; Output Channels: 8Power Supply: 5V; Load Voltage: AC 250V 10A, DC 30V 10A
Overall Size: 137 mm x 56 mm x 17 mm / 5.4" x 2.2" x 0.7" (L * W * H);
Mounting Hole Size: 3mm / 0.12"
Mounting Hole Center Distance: 132 x 50 mm / 5.2" x 2" (L * W);
Material: Electrical Components
Weight: 122g;
Package Contents: 1 x 8-Channel Relay Module
Features
- BrandWOIYIC
- ColourGreen
- Height10 mm
- Amperage10 A
- Width10 mm
- MaterialPolystyrene (PS)
- Weight100 g
- Electrical networkSingle-phase
- Voltage5 V
- Contact typeChangeover (SPDT)
- ManoMano ReferenceME96635573
- MMID237950167632
- Product codeMM-UK-ZN02703
- EAN8901573545580
