Product information

Description

General description

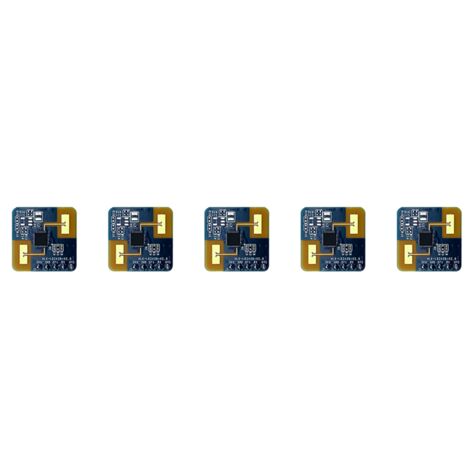

The 5X 24G MmWave LD2420 Human Presence Radar Sensor Motion Detection Module is designed for accurate motion detection in various environments. It operates in the 24 GHz frequency band and is suitable for detecting human presence within a specified range.

Technical specifications

Frequency: 24G-24.25GHz

Modulation mode: FMCW

Detection distance: 0.75~6m adjustable

Detection angle: ±60°

Power supply: 3.3V (Typ.)

Power supply input voltage: 3.0V~3.6V

Current: ~50mA

Output serial level: 3.3V

Scanning Bandwidth: 250MHz

Temperature range: -40°C~+85°C

Data Format: ASCII Serial Output/High and Low Level 3.3V

Package: Default with pins

Color: Blue

Material: Plastic+Metal

Measurement allowed error: +/- 1-3 cm

Installation

Ensure the radar is equipped with a housing that has good wave transmission characteristics in the 24 GHz band, avoiding metals or materials that shield electromagnetic waves.

Install the product in a suitable environment, considering factors that may affect detection.

When wall-mounted, account for external interference from air conditioners and electric fans above the room.

Usage

Avoid environments with non-human objects that have continuous movement, such as animals or swinging curtains, as they may affect detection.

Be cautious of large, highly reflective planes or objects directly in front of the radar antenna, as they can cause interference.

Other information

Package Contents: 5 x Induction Module (other products not included)

Note: Light reflection and different displays may cause the color of the item to differ slightly from the actual product.

Features

Brand
TLILY
Length
8 cm
Width
7 cm
Height
5 cm
Voltage
3.3 V
