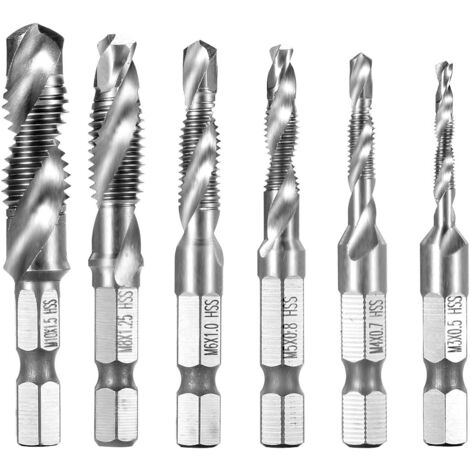

Piece Drill HSS Hexagon Shank M3-M10 Tap – Silver

~~£23.16~~

Product information

Description

General description

Made of 4341 high-speed steel (HSS), this Piece Drill HSS Hexagon Shank M3-M10 Tap is designed for high hardness, rust-proof durability, and a long service life. It features six size combinations (M3x0.5, M4x0.7, M5x0.8, M6x1, M8x1.25, M10x1.5) to meet various drilling needs. The sharp drill bits resist slight induction wear, ensuring higher punching speed and improved work efficiency. This tool allows for drilling, tapping, deburring, and countersinking in one step, saving time and processing steps.

Technical specifications

Material: 4341 High Speed Steel

Chamfer angle: 90°

Shank: 1/4" (6.35mm) Hex Shank

Sizes: M3x0.5 (Total Length: 54mm), M4x0.7 (Total Length: 55mm), M5x0.8 (Total Length: 56mm), M6x1 (Total Length: 57mm), M8x1.25 (Total Length: 59mm), M10x1.5 (Total Length: 60mm)

Surface Treatment: Titanium Plating

Usage

Suitable for drilling wood, plastic, thin copper, aluminum, and other soft metals (5-6mm thickness).

Not suitable for hard materials such as steel plates.

Inject water while drilling to cool the drill bit.

If cooling is not possible, reduce drilling speed and frequency.

Apply oil before using the tap to facilitate operation and extend its life.

Other information

Features: Drilling, tapping, and deburring/countersinking.

Advantages for metal wire and aluminum include drilling, tapping, and chamfering.

Spiral groove design helps avoid thread damage caused by overdrilling.

Features

Brand
XIDJUIKM
Warranty
2 year(s)
Diameter
6 mm
Shank type
Hexagonal
Compatible machine
Drill
Suitable for
Wood
Material to Work On
Wood
Material
HSS
Coating for drill bits and milling cutters
TiAlN
Drill bit type
Multi-purpose
Bit type
Forest
Insertion type
Hexagonal
Sold as a set
Yes
ManoMano Reference
ME62708792
MMID
670396271761
Product code
IKM1345
EAN
9020162750088
