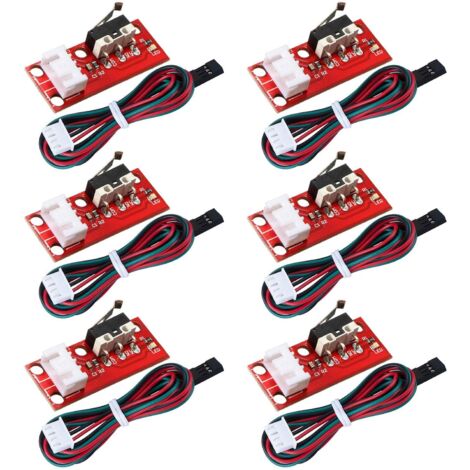

6 Pieces Mechanical End Stop Switch for RepRap Prusa Mendel CNC Arduino Mega 2560 RAMPS 1.4 3D Printer
You may also like
Compare with similar items
Product information
Description
【3-Pin Wires】Plug and play. No soldering required. Red wire - VCC (RAMPS), Black wire - GND (RAMPS-), Green wire - SIGNAL (RAMPS-).
【Reliable Design】Limit switch using 22AWG wire; the internal copper wire is thick and can withstand a current of 2A and a voltage of 300V.
【Easy Installation】Mechanical limit switch triggered by a simple mechanical switch. The other end of the plug, to make a complete unit, can be inserted directly for use.
【Wide Application】This limit switch is designed for RepRap 3D printers or CNC machines. It is supported by RepRap electronics, RAMPS 1.4, and other popular RepRap boards.
【Package Contents】6 x 3D printer limit switches. Features:
Plug-and-use mechanical limit switch with LED indicators.
The cable is 22AWG; the internal copper wire is thicker than ordinary wire and can withstand a current of 2A and a voltage of 300V.
The insulation layer has a wide temperature range up to 80 degrees Celsius.
The connecting cable is not easy to break, and plugging and unplugging is also convenient.
Is designed for printers RepRap 3D or CNC machines, it is supported by RepRap electronics, RAMPS 1.4 and other popular RepRap boards.
Specifications:
Wire Type: 22AWG
Working Voltage/Current: 300V/2A
Temperature Resistance: 80 degrees Celsius
Cable Length: 70 cm
Size: 40 x 15 mm
Tips: Under normal circumstances, the system should be configured with at least three mechanical switches.
Connection Description:
Red Wire - VCC (RAMPS)
Black Wire - GND (RAMPS -)
Green Wire - SIGNAL (RAMPS S)
Package Contents:
6 * End of course
6 * 3-pin 70cm cable
Features
- BrandWOIYIC
- MaterialCopper
- ManoMano ReferenceME96633683
- MMID265781133728
- Product codeMM-UK-ZN02658
- EAN8901573545139
