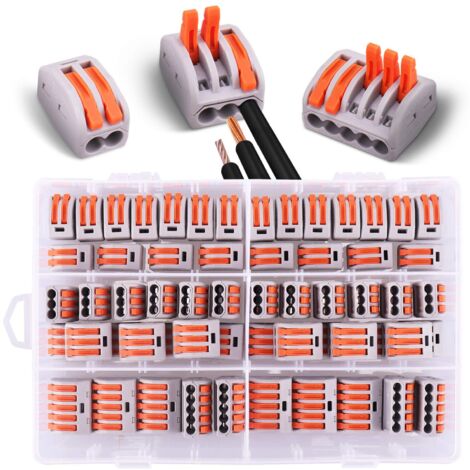

60 pieces electrical connectors with control lever, 30 pieces 2 inputs, 20 pieces 3 inputs, 10 pieces 5 inputs White, Orange

~~£30.74~~

Product information

Description

General description

These 60 pieces electrical connectors with control lever include 30 pieces with 2 inputs, 20 pieces with 3 inputs, and 10 pieces with 5 inputs. They are designed for increased safety and ease of use, making electrical connections cleaner and more efficient.

Technical specifications

Material: Modified insulating material nylon 6.6 and tinned copper

Rated voltage: 250V

Rated surge voltage: 4KV

Rated current: 32A

Compatible wire section (solid and stranded conductors): 0.08 - 2.5 mm²

Compatible wire section (flexible conductors): 0.08 - 4 mm²

Stripping length: 10 - 11 mm

Dimensions: 2-way clips (2.1 x 1.3 x 1.5 cm), 3-way clips (2.1 x 1.7 x 1.5 cm)

Usage

No tools required for installation

Steps for use: 1. Strip 10-11 mm of cable sheath 2. Raise the lever to 90° 3. Insert the wires 4. Press the lever

Each terminal has a test hole for easier testing and maintenance

Other information

Resistant to leakage current, corrosion, and aging

Reliable connection with spring clamp technology that adjusts clamping force automatically

Ideal for lighting systems, construction cables, communication systems, and security warning systems

Easy to carry with all connectors included in one box

Features

Brand
MEMKEY
Pcs per pack
60
NF certification
NF138
Origin
Made in Serbia
Colour
Orange
Amperage
32 A
Material
Nylon
Voltage
250 V
Terminal block type
Junction connector
Terminal block use
General purpose
ManoMano Reference
ME80980313
MMID
581555235332
Product code
MM-FR12200
EAN
9381014535131
