60Pcs Electrical Terminals Bolt Hole Tinned Copper SC Connectors Crimp/Solder For 6m㎡ 8m㎡ 10m㎡ 16m㎡ 25m㎡ Cable

~~£22.61~~

Of which environmental contribution £0.10 including VAT.

Sold by A10 ROOFING (LONDON) LIMITED

Product information

Description

General description

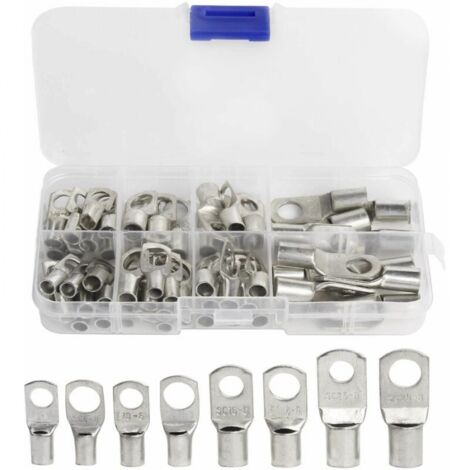

A set of 60 pieces of SC cold junction terminals, including 8 types, sorted and packed in a plastic box. These tinned copper connectors are designed for crimping or soldering, suitable for various cable sizes.

Technical specifications

Total Quantity: 60 Pcs

Material: Tin Plated Copper

Box Size: 14.5 x 6.5 x 2 cm

Sizes and Quantity:

SC6-6: Cable Diameter: 6 mm², Screw Hole Diameter: 6 mm (10 PCS)

SC6-8: Cable Diameter: 6 mm², Screw Hole Diameter: 8 mm (10 PCS)

SC10-6: Cable Diameter: 10 mm², Screw Hole Diameter: 6 mm (10 PCS)

SC10-8: Cable Diameter: 10 mm², Screw Hole Diameter: 8 mm (10 PCS)

SC16-6: Cable Diameter: 16 mm², Screw Hole Diameter: 6 mm (5 PCS)

SC16-8: Cable Diameter: 16 mm², Screw Hole Diameter: 8 mm (5 PCS)

SC25-6: Cable Diameter: 25 mm², Screw Hole Diameter: 6 mm (5 PCS)

SC25-8: Cable Diameter: 25 mm², Screw Hole Diameter: 8 mm (5 PCS)

Long-term working temperature: -55℃ to 150℃

Usage

These tinned copper ring terminals are ideal for outdoor installations, commonly used in:

Power grids

Aviation

Ships

High-speed rail

Electrical manufacturing

Automotive aftermarket

Other information

The sturdy structure of the terminals provides strong temperature resistance, and the closed design ensures the safety of the connection. The standard flared opening allows for easy wire insertion. Electrolytic tin plating offers excellent corrosion resistance and minimizes electrical contact resistance.

Features

Brand
CYSLMUK
Voltage
1 V
Amperage
1 A
Material
Copper
Colour
Copper
