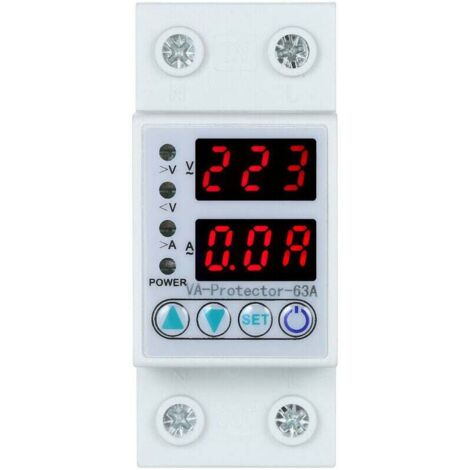

63A 220V DIN Rail Adjustable Overvoltage and Protection Device Relay Protector Overcurrent Protection Domestic Use Dual LED Display
You may also like
Compare with similar items
Product information
Description
The adjustable voltage and current protector with dual LED display is suitable for single-phase 220V, 50/60Hz, 63A operating current. It is primarily used for overvoltage, undervoltage, or overcurrent protection of single-phase electrical equipment distribution lines. Its main feature is that when the circuit experiences overvoltage, undervoltage, or overcurrent problems, the product can instantly cut off the power supply to protect the electrical equipment from damage. Additionally, the protector can automatically restore power when the circuit voltage returns to normal. The overvoltage, undervoltage, and overcurrent values of this product can all be configured and adjusted according to local conditions.
Features:
Voltage and Current Protection - Cuts off the power when the circuit experiences overvoltage, undervoltage, or overcurrent. Protect your home electrical equipment from damage.
Automatic Reconnection - Turns the power back on when the circuit voltage and current return to normal.
Adjustable - Overvoltage range 230V-300V, undervoltage range 140V-210V, overcurrent range 1-63A. Adjustable fault recovery delay time from 1 to 600 seconds.
Dual LED Display - Two separate digital LED displays can independently show the actual voltage and current for easier and clearer readings; can be used as a voltmeter and ammeter.
Customizable - The overvoltage, undervoltage, and overcurrent values of this product can all be configured by you and adjusted according to local practical conditions.
Specification:
Rated Supply Voltage: AC 220V
Operating Voltage Range: AC 80V-400V (single-phase)
Rated frequency: 50/60 Hz
Electric current setting range (> A): 1-63A
Overvoltage setting range (> U): 230-300 V
Undervoltage setting range (< U): 140-210 V
Error: 2
Trip delay> U and Reset/Start-up Delay: 1s-600s
Voltage Measurement Accuracy: 1%
Rated Insulation Voltage: 400V
Output Contact: 1NO
Electrical Life: 10^5
Mechanical Lift: 10^6
Protection Rating: IP20
Installation: DIN Rail
Item Size: 85 * 65 * 37mm / 3.35 * 2.56 * 1.46in
Package List:
1 * Voltage and Amp Protector
1 * User Manual
Features
- BrandTEHTUY
- Warranty1 year(s)
- Amperage63 A
- MaterialCross-linked Polyethylene
- Type of electrical installationDIN rail
- Weight100 g
- Voltage220 V
- ManoMano ReferenceME98975367
- MMID591700345807
- Product codeZJL-mano-05440
- EAN6282768127920
