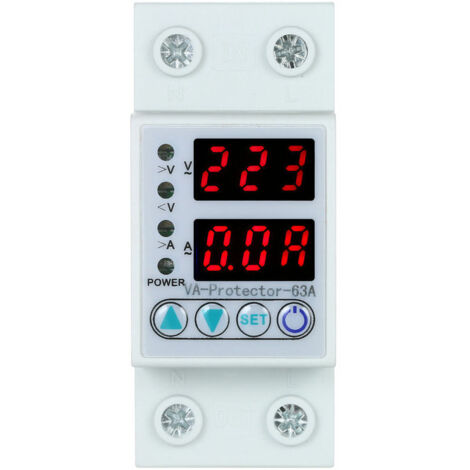

63A Adjustable Auto Reset Overvoltage and Undervoltage Current Limiter with Dual LED Display

~~£36.98~~

Product information

Description

General description

The 63A Adjustable Auto Reset Overvoltage and Undervoltage Current Limiter with Dual LED Display is designed for single-phase 220V, 50/60Hz applications. This device provides essential protection against overvoltage, undervoltage, and overcurrent, ensuring the safety of your electrical equipment. It features an automatic reconnection function, which restores power when the circuit conditions return to normal.

Technical specifications

Rated Power Supply Voltage: AC 220V

Operating Voltage Range: AC 80V-400V (single phase)

Rated Frequency: 50/60 Hz

Electric Current Adjustment Range: 1-63A

Overvoltage Adjustment Range: 230-300V

Undervoltage Adjustment Range: 140-210V

Fault Recovery Delay Time: Adjustable from 1 to 600 seconds

Voltage Measurement Accuracy: 1%

Rated Insulation Voltage: 400V

Output Contact: 1NO

Electrical Life: 10^5 cycles

Mechanical Life: 10^6 cycles

Protection Degree: IP20

Size: 85 * 65 * 37mm / 3.35 * 2.56 * 1.46in

Installation

The device is designed for installation on a DIN rail, making it easy to integrate into existing electrical systems.

Usage

This current limiter is ideal for protecting home electrical equipment from damage caused by voltage fluctuations and overcurrent situations. It can also function as a voltmeter and ammeter, providing real-time readings of voltage and current through its dual LED displays.

Other information

Packing List: 1 * Voltage and Ampere Protector, 1 * User Manual

Features

Brand
GOTRAYS
Length
8.5 cm
Voltage
220 V
Amperage
63 A
IP rating
IP20
