– 6.5 HP 196CC 4-stroke gasoline engine – Pull start – For construction equipment – ​​OHV technology for optimal performance

General Description

The 6.5 HP (196CC) 4-stroke replacement gasoline engine is designed to deliver optimal performance in a variety of working environments. Its advanced design reduces carbon buildup and simplifies maintenance. This engine is widely used in equipment such as polishers, threshers, hullers, grain vacuum machines, sprayers, and tillers.

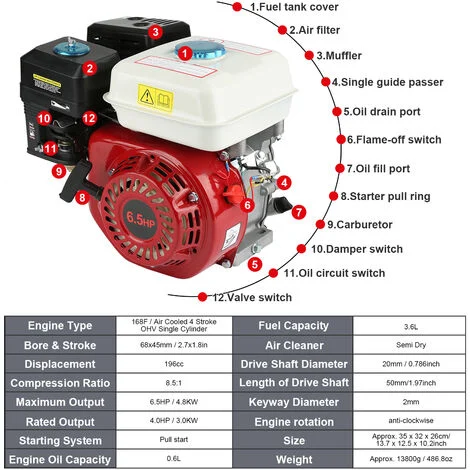

Technical Specifications

• Engine Type: 168F / Single Cylinder OHV 4-Stroke Air-Cooled
• Bore and Stroke: 68 x 45 mm
• Displacement: 196 cc
• Compression Ratio: 8.5:1
• Maximum Power: 6.5 HP / 4.8 kW
• Rated Power: 4.0 HP / 3.0 kW
• Starting System: Pull Start
• Engine Oil Capacity: 0.6 L
• Fuel Capacity: 3.6 L
• Air Filter: semi-dry
• Drive shaft diameter: 20 mm / 0.786 inch
• Drive shaft length: 50 mm / 1.97 inch
• Keyway diameter: 5 mm
• Motor rotation: counterclockwise
• Size: approximately 35 x 32 x 26 cm / 13.7 x 12.5 x 10.2 inches
• Weight: approximately 13800 g / 486.8 oz
