Name: 6.5 Ton Safety Pin Galvanised Dee Shackle - 6500KG Upset Forged Tested Certified
SKU: SFYPUFSAD6.5
Price: 13.7 GBP
Availability: InStock

Product information

Description

General description

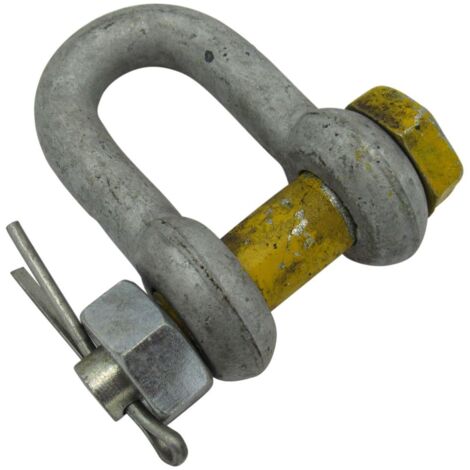

6.5 Ton Safety Pin Galvanised Dee Shackle is designed for heavy-duty lifting applications. Manufactured using upset forged techniques, this shackle features a hot-dipped galvanised body and a painted pin finish, ensuring durability and resistance to corrosion. With a safety factor of 5:1, it provides a safe working load of 6.5 tons, making it ideal for various lifting tasks.

Technical specifications

Safe Working Load: 6.5 Tons

Body Finish: Hot Dipped Galvanised

Pin Finish: Painted

Safety Factor: 5:1

Conforms to: BS EN 13889: 2003 + A1: 2008

Product Code: SFYPUFSAD6.5

Dimensions:

A: 22 mm

B: 27 mm

C: 69.5 mm

D: 35.5 mm

E: 56 mm

Other information

Test certificate supplied (sent via email). Please note that the color may vary from the picture. A wide variety of lifting equipment is also available.

Features

Pcs per pack
1
Weight
100 g
Maximum load
6500 kg
Material
Two-material
ManoMano Reference
ME27136184
MMID
494254804818
Product code
SFYPUFSAD6.5
EAN
600988495029
