Product information

Description

General description

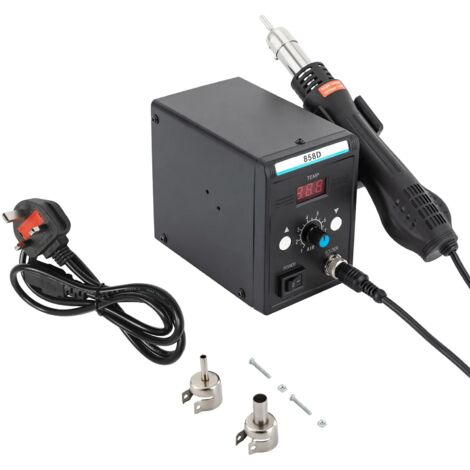

SMD welding technology is essential in modern electronic component production and maintenance. The 700W Hot Air Rework Station is a powerful tool designed for soldering and desoldering tasks, featuring a hot air gun, three hot air nozzles, and a reliable power supply. It offers precise control, simple operation, and a high-quality LED digital display, ensuring a professional soldering experience.

Technical specifications

Model: 858D

Power: 700W

Input: 220V

Temperature Range: 100~500°C / 212~932°F

Temperature Stability: ± 1°C / 33.8°F

Air Volume: 120L/min, 31.7GPM

Noise Level: <45db

Tip to Ground Resistance: <2Ω

Tip to Ground Voltage: <2mV

Fuse: 5*20mm / 0.2*0.78inch 5A Max

Nozzle Diameter: 5mm / 0.2inch, 8mm / 0.3inch, 10mm / 0.4inch

Hot Air Gun Length (Line Included): 1.2m / 3.9ft

Multi-Station Size: 15.3*9.6*13.8cm / 6*3.78*5.4inch

Package Size: 27*18*20cm / 10.6*7*7.8inch

Net Weight: 1.6kg / 3.5 lbs

Gross Weight: 2kg / 4.4 lbs

Installation

Turn off the power and wait until the steel tube cools down.

Slot the nozzle into the steel tube and press it to the bottom.

Tighten the screw to complete the installation of the nozzle, but do not overtighten it to avoid deformation.

Usage

Suitable for soldering or desoldering SOIC, CHIP, QFP, PLCC, BGA, and other temperature-sensitive components.

Ideal for thermal shrinking, thawing, reheating, cell phone repair, laptop repair, chip removal, SMD repair, and circuit board soldering.

Equipped with an ergonomic handle for comfortable grip and reduced hand fatigue.

Features a built-in angle sensor for automatic standby mode and rapid reheating.

Easy to operate with a large LED digital display and simple control knobs.

Other information

Package includes: 1 Hot Air Rework Station, 1 Hot Air Gun, 1 Gun Holder, 3 Hot Air Nozzles, 1 Power Cable, 1 English Manual.

It is recommended to use the equipped nozzles for dismantling and soldering operations.

Ensure to wear appropriate safety gear such as goggles and gloves during use.

For digital temperature calibration, use a professional thermometer with an external thermocouple.

It is normal to experience smoke and smell after the first use.

Clean the nozzles and heating element periodically for optimal performance.

Do not block the cooling holes with foreign objects to maintain proper heat dissipation.

Features

Brand
CNCEST
Warranty
1 year(s)
Air flow
120 l/min
Material
Steel
Display mode
Digital
Weight
1.6 kg
Power
700 W
Voltage
220 V
ManoMano Reference
ME94263816
MMID
195878222595
Product code
20211012205
EAN
762203055972

700W Hot Air Rework Station Soldering Heat Gun Digital Display Quick Station
