775 DC 12V 10000RPM 24V 20000RPM Electric Motor with Mounting Bracket and Brushed Small DC Motor
Sold by HYPERDROP
You may also like
Compare with similar items
Product information
Description

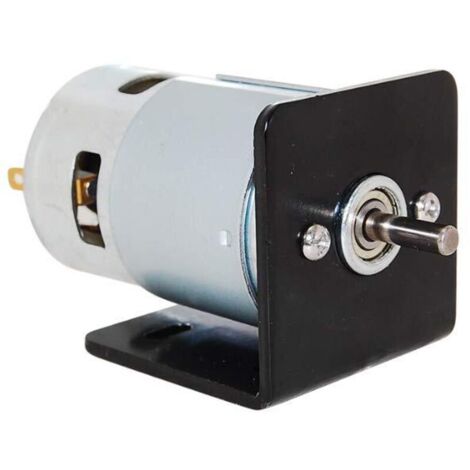

*This is a 775 DC motor with a bracket. The mounting brackets are designed to be used as additional support for your motors or as an alternative mounting option. Motor Specifications: 1. Rated Voltage: DC 12V, No-load Speed: 10,000 RPM, Load Speed: 8,800 RPM. 2. Rated Voltage: DC 24V, No-load Speed: 20,000 RPM, Load Speed: 17,600 RPM. 3. Starting Current: 4-5A. 4. Motor Body Diameter: 42mm. Motor Body Length: 66.5mm. Shaft Length: 16mm. Shaft diameter: 5 mm.
* Bracket specifications: Length: 50 mm, Width: 52 mm, Height: 53 mm, Mounting hole diameter: 4 mm, Bracket thickness: 3 mm.
* Application: Suitable for mini cutting machines, sanders, lathes, milling machines, bench drills, electric hand drills, polishing machines, electric grinders, engraving machines, etc.
* Contents: 1 DC motor, 1 bracket, 2 screws
* Bracket specifications: Length: 50 mm, Width: 52 mm, Height: 53 mm, Mounting hole diameter: 4 mm, Bracket thickness: 3 mm.
* Application: Suitable for mini cutting machines, sanders, lathes, milling machines, bench drills, electric hand drills, polishing machines, electric grinders, engraving machines, etc.
* Contents: 1 DC motor, 1 bracket, 2 screws
Features
- BrandSEVENGIRL
- MaterialMetal
- Motor mountingFoot mounting
- Type of currentDirect current
