Product information

Description

General description

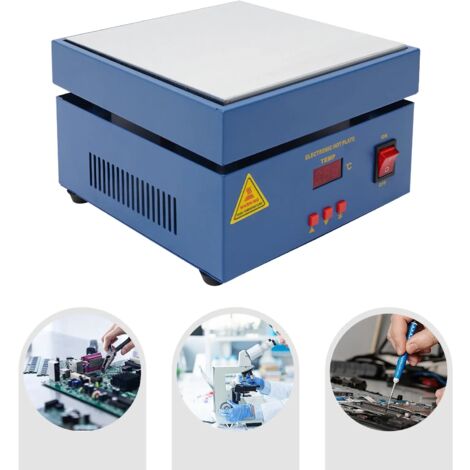

A high-performance electronic hot plate designed for efficient and convenient work results. It features a high-precision sensor, premium heating element, and a heating plate with excellent thermal conductivity, providing uniform and fast heating effects for SMD reconstruction operations, PCB disassembly, and soldering tasks.

Technical specifications

Power: 800W

Temperature Range: 50~400°C / 122~752°F

Precision: ±2℃ / ±35.6℉

Input: AC 220-250V, 50/60Hz

Heating Area Size: 20*20cm / 7.87*7.87in

Product Size: 22*22*14.5cm / 8.66*8.66*5.71in

Package Size: 28*28*22cm / 11.02*11.02*8.66in

Gross Weight: 3.5kg / 7.72 lbs

Net Weight: 3.33kg / 7.34 lbs

Power Cord Length: 1.8m / 5.91ft

Material: Aluminum Alloy, Stainless Steel, Sheet Metal

Display: LCD

Mounting Type: Tabletop

Installation

Ensure the workbench is flat and made of heat-resistant material.

Do not place the product in damp or corrosive environments.

Usage

Widely used in research institutes (biology, electronics, medicine) and for component heating, SMD reconstruction, PCB disassembly, and soldering operations.

Suitable for sealing small packages such as cigarettes, poker boxes, cosmetics, and electronic products.

Compatible with BOPP films and PVC heat-sealing films.

Other information

Features an anti-scald edge design and built-in fuses for safety.

Cooling holes for effective heat dissipation.

Easy to clean with a smooth surface.

Control panel with real-time temperature display.

Notes: Avoid using near flammable materials, and ensure to cut off power after use.

Features

Brand
CNCEST
Weight
3.3 kg
Power
800 W
Material
Stainless steel
Power source
Corded

800W Digital Preheat Soldering Station 7.87x7.87in Hot Plate 122-752°F LCD For SMD reconstruction operations, PCB disassembly, and soldering operations
