General description
The 813402 Awning Bracket is designed for versatile mounting options, fitting most roof racks including Thule SquareBar and Rhino Heavy Duty bars. It features a width of 50mm and is suitable for both vertical and upside-down installations. This bracket is classified as a light-duty option, ideal for highway use, and is not intended for off-road applications.Technical specifications
- Width: 50mm
- Thickness: 4mm
- Pre-drilled holes: 8mm
- Mounting holes: Three 6mm slotted holes for awning attachment
- Weight classification: Light duty
Compatibility and accessories
- Compatible with Thule SquareBar, Rhino Heavy Duty bars, and most roof racks
- Recommended to use 2 or 3 brackets for secure awning mounting
- Hardware for mounting is not included
Installation
- Mounting can be done vertically or upside down
- Use a minimum of 2 bolts, preferably 3 bolts for maximum strength
- For effective reinforcement, ensure outer bolt holes between reinforcements are utilized
- Use T-bolts and castle nuts as recommended by the roof rack manufacturer
Usage

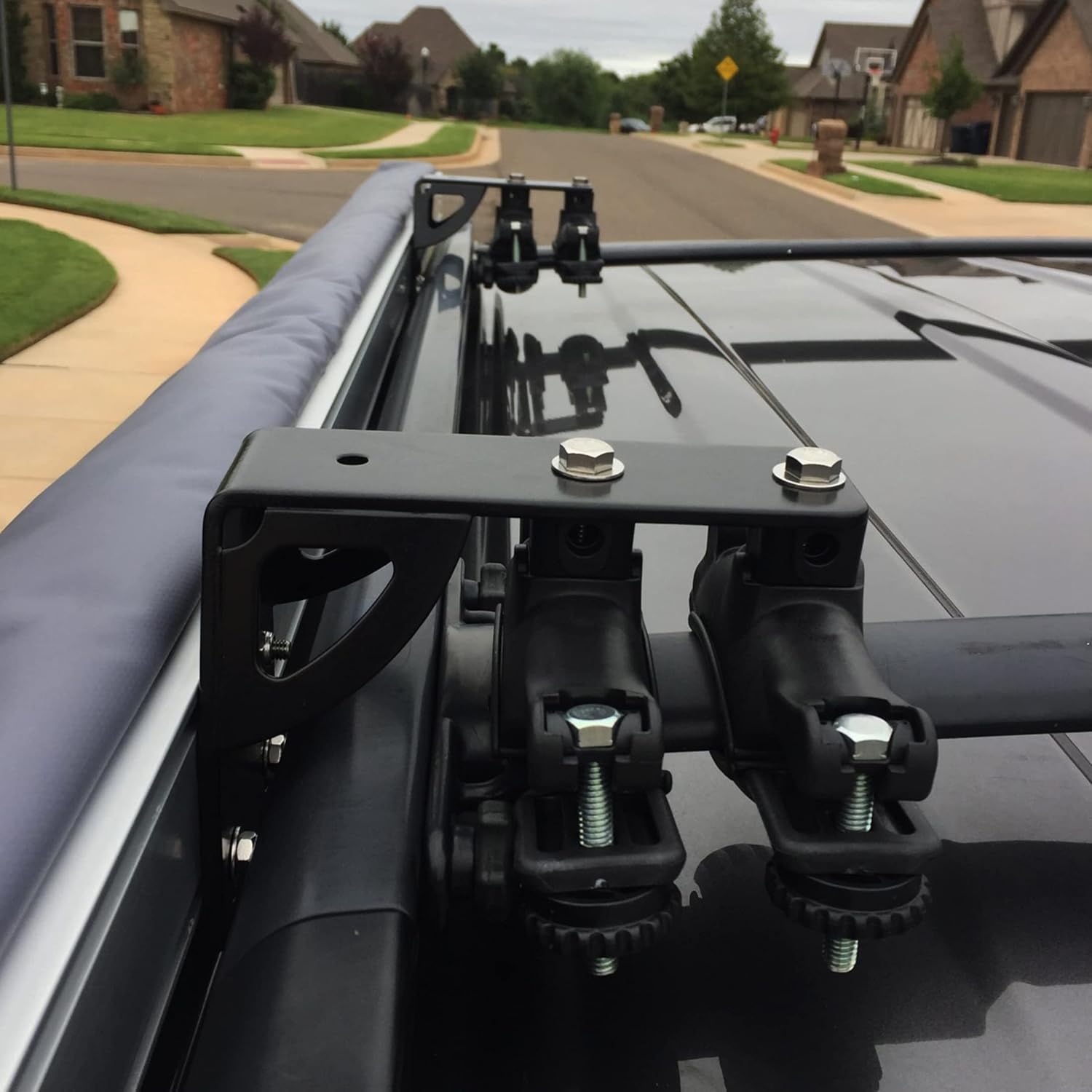

- Designed for mounting awnings to roof racks
- Recommended for highway use only
- For larger awnings, using three support brackets is advised
