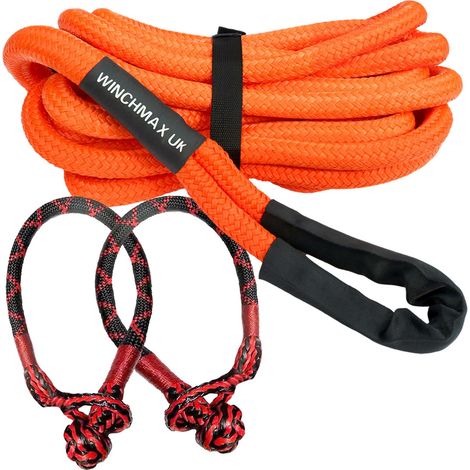

9m Kinetic Rope and Soft Shackle

Name: 9m Kinetic Rope and Soft Shackle
Brand: WINCHMAX
SKU: WM1283(M)
Price: 129.95 GBP
Availability: InStock

Sold by Winchmax Ltd

Product information

Description

General description

WINCHMAX 9m x 25mm Kinetic Recovery Rope is designed for safely recovering stranded vehicles from mud, snow, sand, and other challenging terrains. Unlike traditional recovery methods, this kinetic rope stretches to store kinetic energy, creating a powerful pulling force that exceeds the capabilities of fixed tow ropes. The rope features superior elasticity and strength, making it ideal for 4x4 vehicles and trucks up to 4500kg.

Technical specifications

Length: 9m

Diameter: 25mm

Maximum Breaking Force (MBF): 14,500kg

Elongation: Up to 30% of original length

Soft Shackle Minimum Breaking Force: 18,000kg (18T) / 40,000lb

Soft Shackle Diameter: 9.4mm (3/8″)

Soft Shackle Length: 70cm

Soft Shackle Weight: 0.14kg

Compatibility and accessories

Recommended for 4x4 vehicles and recovery vehicles up to 4500kg

Compatible with most winches and recovery points

Includes a protective sleeve for the soft shackle to prevent abrasion

Installation

To use the WINCHMAX Kinetic Recovery Rope, connect it to suitable load-bearing recovery points on both the stuck vehicle and the recovering vehicle. The soft shackle is looped through the recovery point and winch hook, then pulled tight. The recovering vehicle should drive forward to take up tension and stretch the rope, while the stuck vehicle attempts to drive in the same direction.

Usage

The initial pull should be minimal to assess the required forces. If the stuck vehicle is not extracted, the recovering vehicle should back up and repeat the process, gradually increasing forward momentum until the vehicle is freed.

Other information

Bright orange color for visibility

100% double-braided nylon construction

Vinyl Polymer coating for durability

Water, UV, and abrasion resistant

Soft shackles are safer and lighter than traditional metal alternatives

Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical

Features

Brand
WINCHMAX
Length
9 m
Diameter
25 mm
Weight
4000 g
Material
Nylon
