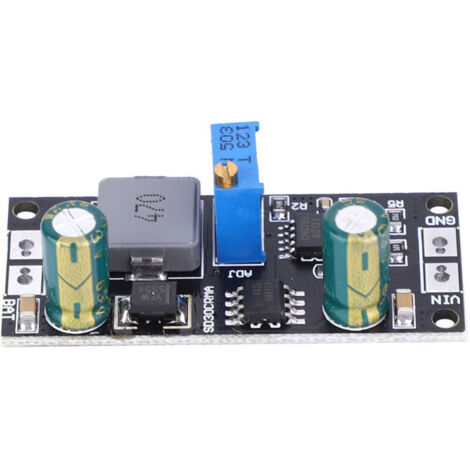

9V/18V Solar Panel Controller 3.7V 7.4V 18V Lithium Battery Charger Module

~~£41.47~~

Of which environmental contribution £0.10 including VAT.

Product information

Description

1. Multifunctional 1A 3.2-18.5V battery charger with photovoltaic cell function.
2. Complete charge controller for single or multiple Li-ion, LiFePO4, or lithium titanate batteries.
3. The maximum charging/output current is 1A, but you can adjust the current by changing the value of the Rcs resistor.
4. Can be used as a voltage source when the battery is unavailable.
5. Automatic conditioning of deeply discharged batteries.
6. Automatic charging, battery overvoltage protection.

Specification:

Item type: Solar panel controller charging module.
Optional: 9V, 18V
9V (for 9V solar panel): DC input 9-28V, DC output 1.2-8V adjustable (3.6V 4.2V 4.3V 4.35V 7.2V)
18V (for 18V solar panel): DC input 18-28V, DC output 1.2-17V adjustable (3.6V 4.2V 4.3V 4.35V 8.4V 12.6V 16.8V)
Disable (Change R5 to 12KΩ; DD28CRTA is recommended): DC input 7-28V, DC output 1.2-21V Adjustable (3.6V 4.2V 4.3V 4.35V 8.4V 12.6V 16.8V 21V)
LED Indicator: "CR" LED is a charging status indicator
Operating Ambient Temperature: -40°C to 85°C

Package List:

1 x Solar Panel Controller Charging Module

Features

Brand
TEHTUY
Power
1 W
Voltage
1 V
Amperage
1 A
Material
Cross-linked Polyethylene
