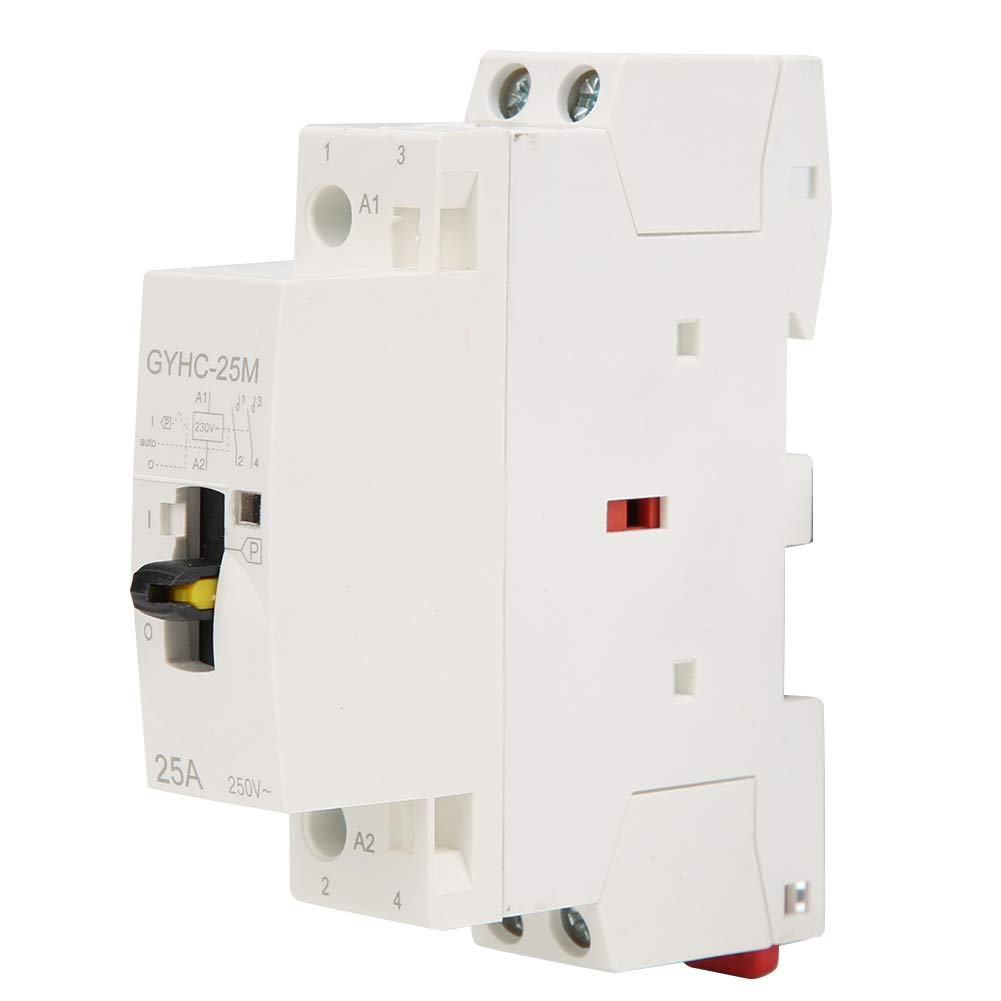

AC Contactor, DIN Rail Silent Contactor 25A, 4-Position Domestic Switch, AC Contactor with Manual Control Switch 2P 25A 220V 50Hz (2NO)

~~£70.49~~

Of which environmental contribution £0.10 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

This 25A silent AC contactor is designed for domestic use with a 4-position switch, allowing for manual control and automatic adjustment. It offers a 70% reduction in volume compared to traditional contactors, while consuming 75% less energy. With a noise level below 15 dB, it operates quietly and safely. Its reliable electromagnetic system ensures a fast response and good electrical conductivity, while its gas jet arc-quenching design guarantees electrical safety.

Technical Specifications

Element Type: AC Contactor
Rated Voltage (Ue): 250 VAC
Frequency: 50 Hz
Electrical Life: 100,000 cycles
Maximum Switching Operations: 100 times/day
Insulation Voltage (Ui): 500 VAC
Pollution Level: 2
Impulse Withstand Voltage (Uimp): 2.5 kV (4 kV at 12/24/48 VAC)
Degree of Protection (IEC 60529): IP20 (IP40 after installation in the distribution box)
Operating temperature: -5°C to +60°C
Storage temperature: -40°C to +70°C
Heat and humidity resistance (IEC60068.1): Category 2 (95% RH at 55°C)
Options: 2NO, 2NC

Package list

1 x AC contactor

Other information

Features

Brand
TEHTUY
Warranty
1 year(s)
Colour
Black
Availability of spare parts
1 year(s)
Height
10 mm
IP rating
IP20
Material
Cross-linked Polyethylene
Weight
100 g
Voltage
1 V
ManoMano Reference
ME99039805
MMID
516535320261
Product code
ZJL-mano-08960
EAN
6282768163126
