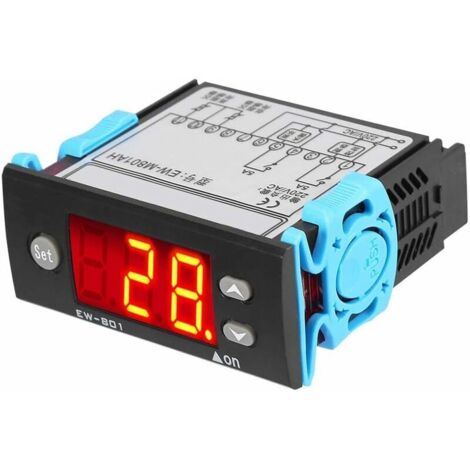

AC220V 5A Digital Temperature Difference Thermostat Controller with Sensor Probe for Solar Water Heater
You may also like
Compare with similar items
Product information
Description
TWO TEMPERATURE ZONES: It is equipped with two output controls, temperature difference control, and two temperature zones.
SCHOOL USE: The products are used in solar water heaters; the temperature difference and temperature control the output.
SMART: When the temperature reaches the set value, the water pump circulation is automatically activated, and temperature balance between the two temperature zones is achieved.
AUTOMATIC: It controls the heating system and automatically maintains the water temperature within the temperature difference range.
The other channel controls the electric heating; when the solar heating does not reach the set temperature, the electric heating system can automatically start and heat to the set temperature.
Specification:
Operating Voltage: AC220V±10% (50Hz/60Hz)
Output Load: 5A/220V/AC
Power Consumption: ≤3W
Heating Control Range: 2℃~99℃
Temperature Difference Start Control: 3℃~50℃
Resolution: 1℃
Accuracy: ±1℃
Input Signal: 2-channel sensor, 20KX2MX2
Size: 76*76*35mm/2.99*2.99*1.37in
Operating Temperature: -10℃~50℃
Operating Humidity: RH≤90%
Light Function Setting Range Default Unit #1 Temperature Difference Start Stop Pump Temperature Difference +1~505℃ #1, #2 Stop Pump Temperature Difference 1~Temperature Difference Start -12℃ #2 Temperature Return Difference 1~205℃ #3 High Temperature Correction -10~100℃ #4 Low Temperature Correction -10~100℃
Package Includes:
1x Temperature Controller
2x Sensor Probes
Note: Please note that the new and old types of this product will be random, and make sure you will not mind before ordering.
Features
- BrandSNQ
- Weight250 g
- Voltage220 V
- MaterialPolyester
- ManoMano ReferenceME92565639
