Accurate Digital Wattmeter 220V Under Electricity Meter DIN Rail Single Phase for Measuring Electricity Consumption, Power, Current, Frequency
You may also like
Compare with similar items
Product information
Description

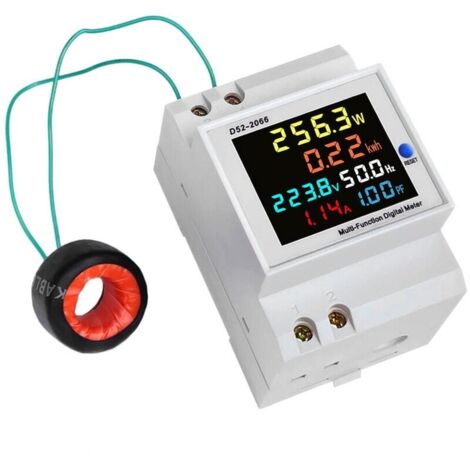

The D52-2066 DIN rail multifunction digital multimeter measures current, voltage, active power, power factor, frequency, and electrical power. It features a large LCD display with a 178° viewing angle for easy data reading. Two models are available: AC 40-300V and AC 250-450V, suitable for different needs. This meter is ideal for applications in the chemical industry, power plants, automation, DOS systems, and electromechanical devices.
Technical SpecificationsName: Power Meter
Material: Plastic
Type: AC 40-300V, AC 250-450V (Optional)
Current: AC 0.00-100.0A
Frequency: 45.0Hz-65.0Hz
Active Power: 0.0-30,000W (AC 40-300V), 0.0-45,000W (AC 250-450V)
Electrical Power: 0-9,999kWh
Power Factor: 0.00-1.00PF
Frequency Speed test: 2 times per second
Item size: 54 x 64 x 80 mm
Package dimensions: 85 x 70 x 60 mm
Package weight: 140 g
Compatibility and accessoriesCompatible with domestic and industrial electrical systems. Measurement options:
40-300 V AC for household electricity (110 V AC or 220 V AC)
250-450 V AC for three-phase electricity (380 V AC)
InstallationEasy installation thanks to its DIN rail mounting, simple and convenient.
UsageUsed to monitor energy consumption and analyze the performance of electrical systems. Ideal for technicians and electricians.
Other informationNo additional information to report.
Features
- BrandWOIYIC
- Amperage100 A
- Control functionYes
- Height8 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of phase(s)Single-phase
- Weight140 g
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME96138039
- MMID707629867727
- Product codeMM-Tina-UN0652
- EAN9324622848132
