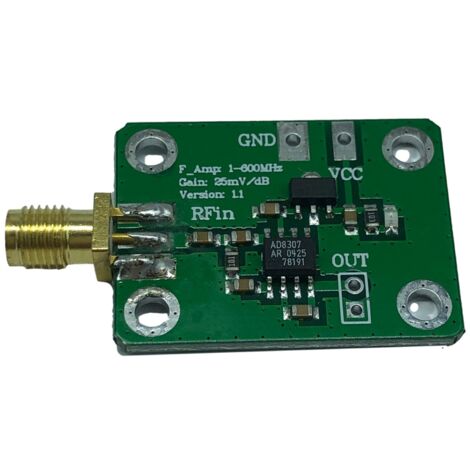

AD8307 RF Power Meter Logarithmic Detector Detection 1-600MHz

High stability over the entire temperature range.
Complete differential DC-coupled signal path.
It is used for RF signal power detection, the detection frequency range is 1MHZ - 600MHZ, it can detect a RF signal with a power of -74dBm to 18dBm, and convert such a RF signal into a DC voltage output.
The greater the amplitude or power of the RF signal, the higher the output voltage, which is proportional to the of the amplitude of the input signal, thus expanding the dynamic range of the detected signal, which reaches 92dB.
It can be widely used in RF signal detection, signal power measurement, environmental field strength detection, and can also be used as a component of automatic gain control and automatic level control.

Working frequency: 1MHZ---600MHZ
Measurement power: -74dBm to +18dBm
Output voltage: 0---2.5V
Detection slope: 25mV/dBm (typ.)
Input impedance: 50 ohms
Supply voltage: 6-15V
Type: RF Power Meter
Model: AD8307
color:Green
Material:Metal

Package Contents:
1 x RF Power Meter

Only the above package content, other products are not included.
