Adjustable double rollers for bathroom shower doors (25 mm)

General Description

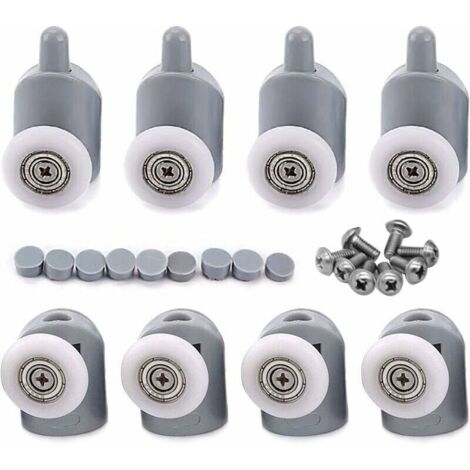

Set of 8 shower enclosure rollers, consisting of 4 upper and 4 lower rollers. These rollers are designed for smooth and quiet operation and feature a spring mechanism that makes them compatible even with curved doors. Technical specifications: Roller diameter: 25 mm; Roller width: 6 mm; Minimum hole diameter in glass: 11 mm; Maximum tempered glass thickness: 6 mm; Height of upper roller: 35 mm; Width of upper roller: 27 mm; Height of lower roller: 33 mm; Total height of lower roller with lugs: 42 mm; Width of lower roller: 27 mm; Hole spacing: 19 mm at the edge of the glass, 10 to 12 mm opening; Compatible glass thickness: 4 to 6 mm. Glass hole diameter: 9.5 to 14 mm

Compatibility and Accessories

• Supplied with screw covers
• Screws and screw covers included

Installation

• To adjust the glass size, simply cut the connecting strip on the glass tank.
• The upper roller is adjustable and can swivel left and right.
• Thanks to its spring, the lower roller can also swivel left and right.

Use

• The rollers allow for smooth movement of the shower doors.
• Adjustment is made by turning the screw clockwise or counterclockwise using a screwdriver.
