General description

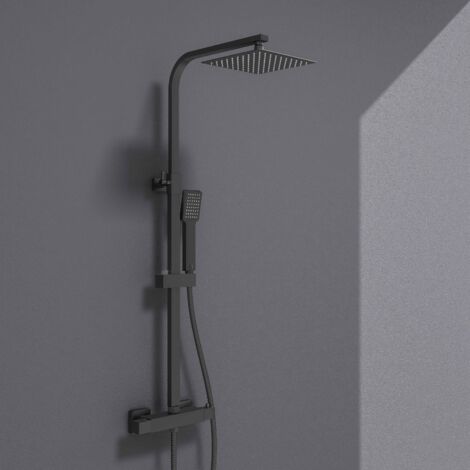

Stand out from the crowd with the AICA Thermostatic Mixer Shower, finished in a sleek matte black for a contemporary edge in your bathroom. This innovative shower features a handy handset for an invigorating spray and a large drencher head to cleanse every pore. Constructed from robust solid brass, this mixer shower ensures durability and reliability. The thermostatic control maintains a consistent water temperature, providing a safe showering experience for the whole family. Adjustable fixing points allow for a customized showering experience, making it a brilliant addition to any modern bathroom.
Technical specifications
- Pipe Centres: 150mm +/- 10mm
- Inlet Connection Size: G1/2"
- Minimum Bar Pressure: 0.05 Bar
- Maximum Bar Pressure: 0.5 Bar
- Shower Hose Length: 1500mm
- Shower Top to Bottom Adjustability: 732mm - 1152mm
- Main Head Flow Rates: 1.0 Bar - 3-5L/MIN, 2.0 Bar - 6-8L/MIN, 3.0 Bar - 9-11L/MIN
- Handset Flow Rates: 1.0 Bar - 2-4L/MIN, 2.0 Bar - 5-7L/MIN, 3.0 Bar - 8-10L/MIN
Installation
The AICA Thermostatic Mixer Shower is designed for easy installation with adjustable riser rail to accommodate different mounting requirements. An installation video is available for guidance.
Usage
This mixer shower features separate controls for flow rate and temperature, allowing for precise adjustments. The diverter valve enables the use of either the drencher head or the handset, but not both simultaneously. The removable inner core allows for easy cleaning to maintain optimal water flow.
Other information
The internal flow channel design prevents scalding, with cold water surrounding the hot water. The surface is made of a zinc alloy shell with anti-scalding material. The shower is constructed from environmentally friendly materials, ensuring zero lead output. It has passed a 96-hour acid salt spray test for corrosion resistance.
