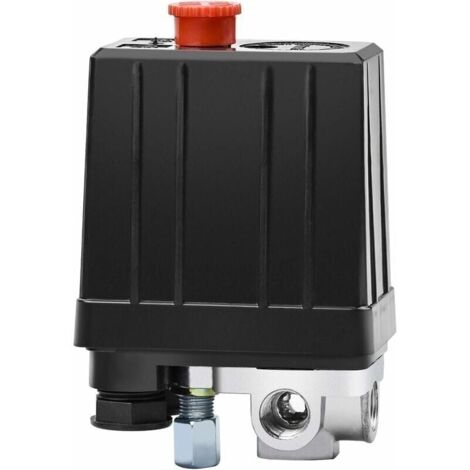

Air Compressor Pressure Switch with 4 Outlets 90-120 PSI 240V Pressure Switch Control Valve Compressor Parts

£22.66
Sold by FIN JD

You may also like

Compare with similar items

Product information

Description

General Description

SG-3B four-hole switch, designed for efficient use in various pneumatic systems.

Technical Specifications

Pressure Range: 0.5-0.8 MPA (90-125 PSI)

Model: SG-3A Vertical One-Way Switch

Dimensions: 82 x 52 x 127 mm (L x W x H)

Rated Voltage: 220/380 V

Exhaust Pipe: 6 mm

Contact Method: Normally Closed

Connector Size: 1/4 inch, internal thread approx. 12 mm

Outer diameter of pressure relief port: 9.5 mm

Maximum current: 16 A

Working pressure: 5-8 kg (90-125 psi)

Lifespan: 80,000 cycles

Compatibility and accessories

Compatible with standard pneumatic systems requiring a four-hole switch. No additional parts are required for installation.

Installation

Easy to install, the switch can be mounted without special skills. Please follow the provided instructions for correct installation.

Use

Ideal for pressure management in pneumatic systems, this switch provides efficient control of connected devices.

Other information

Dimensions may vary slightly due to manufacturing. Check dimensions before installation.

Features

  • Brand
    WOIYIC
  • Length
    82 mm
  • Width
    52 mm
  • Height
    127 mm
  • Voltage
    380 V
