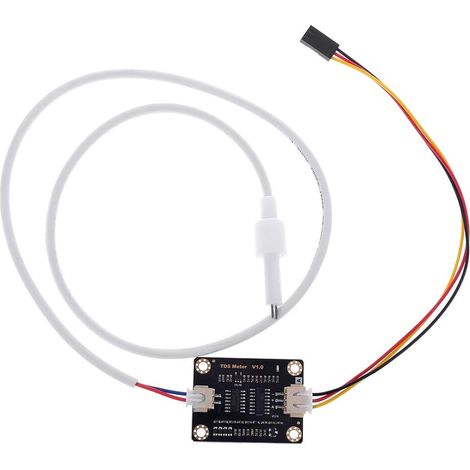

This Arduino-compatible Analog TDS Sensor is designed for liquid detection and water quality monitoring. It measures the Total Dissolved Solids (TDS) value of water, providing insights into its purity. Ideal for applications in drinking water testing and hydroponics, this sensor features a waterproof probe for long-lasting immersion in water.
Technical specifications
Input Voltage: 3.3 ~ 5.5 V
Output Signal: 0 ~ 2.3 V
Operating Current: 3 ~ 6 mA
TDS Measuring Range: 0 ~ 1000 ppm
TDS Measuring Accuracy: ± 10% FS (25 °C)
Dimensions: 42 x 32 mm
Module Interface: XH2.54-3P
Electrode Interface: XH2.54-2P
Number of Probes: 2
Total Length of Probes: 83 cm
Connection Interface: XH2.54-2P
Color: white
Installation
Easy to connect with Arduino, plug and play, no soldering required.
Usage
Measures general household water quality.
Reflects the purity of water for testing in drinking water and hydroponics.
Other information
Waterproof probe for durability.
Features
Brand
TINOR
IP rating
IP68
Material
Plastic
Voltage
3.3 V
ManoMano Reference
ME94200677
MMID
681145100929
Product code
TiR-UK-03603
EAN
8420468920559
