General description

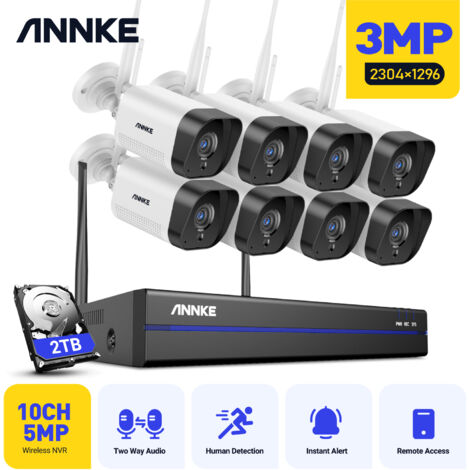

The ANNKE Wireless CCTV Camera System is a comprehensive security surveillance kit designed for both indoor and outdoor use. Featuring 8 channels and a 2TB hard drive, this system allows you to view, record, and play 2K FHD videos with ease. The advanced H.264+ video compression technology ensures high-quality video while saving storage space. With true plug-and-play functionality, you can set up the system quickly and start monitoring your property right away.Technical specifications
- Video Compression: H.264+
- IP Video Input: 8CH Wireless
- Video Output: HDMI and VGA up to 1080p
- Max Recording Resolution: Up to 5MP (2560 X 1920)
- Max Playback Resolution: Up to 5MP (2560 X 1920)
- Max Playback Channel: 4CH
- Max Playback Capacity: 4CH 3MP/2CH 5MP
- HDD Capacity: Up to 6 TB
- Network Interface: RJ45 X1 (10/100 M)
- Wireless Antenna: 2 Ports (IEEE802.11b/g/n)
- WiFi: 2.4 GHz (Built-in Antenna)
- USB: USB 2.0 X1
- Operating Power: DC 12 V
- Power Consumption: 6W (Without HDD)
- Working Temperature: 14 °F ~ 131 °F/-10 °C ~ 55 °C
- Camera Video Resolution: 3MP (2304 X 1296)
- Camera Image Sensor: 1/2.8" Progressive Scan CMOS
- Camera Lens: 3.6 mm
- Camera Angle of View: 70°
- Camera Night Vision Distance: Up to 100 ft/30 m
- Weatherproof Rating: IP66
Installation
- Plug the cameras into nearby outlets.
- Turn on the NVR.
- Connect the NVR to your router.
- Follow the setup instructions in the app for complete installation.
Usage
- Monitor your property remotely via the ANNKE Sight app on your smartphone, tablet, or computer.
- Receive motion-activated notifications and email alerts.
- Use voice commands with Amazon Alexa for hands-free access to your security system.
