General description

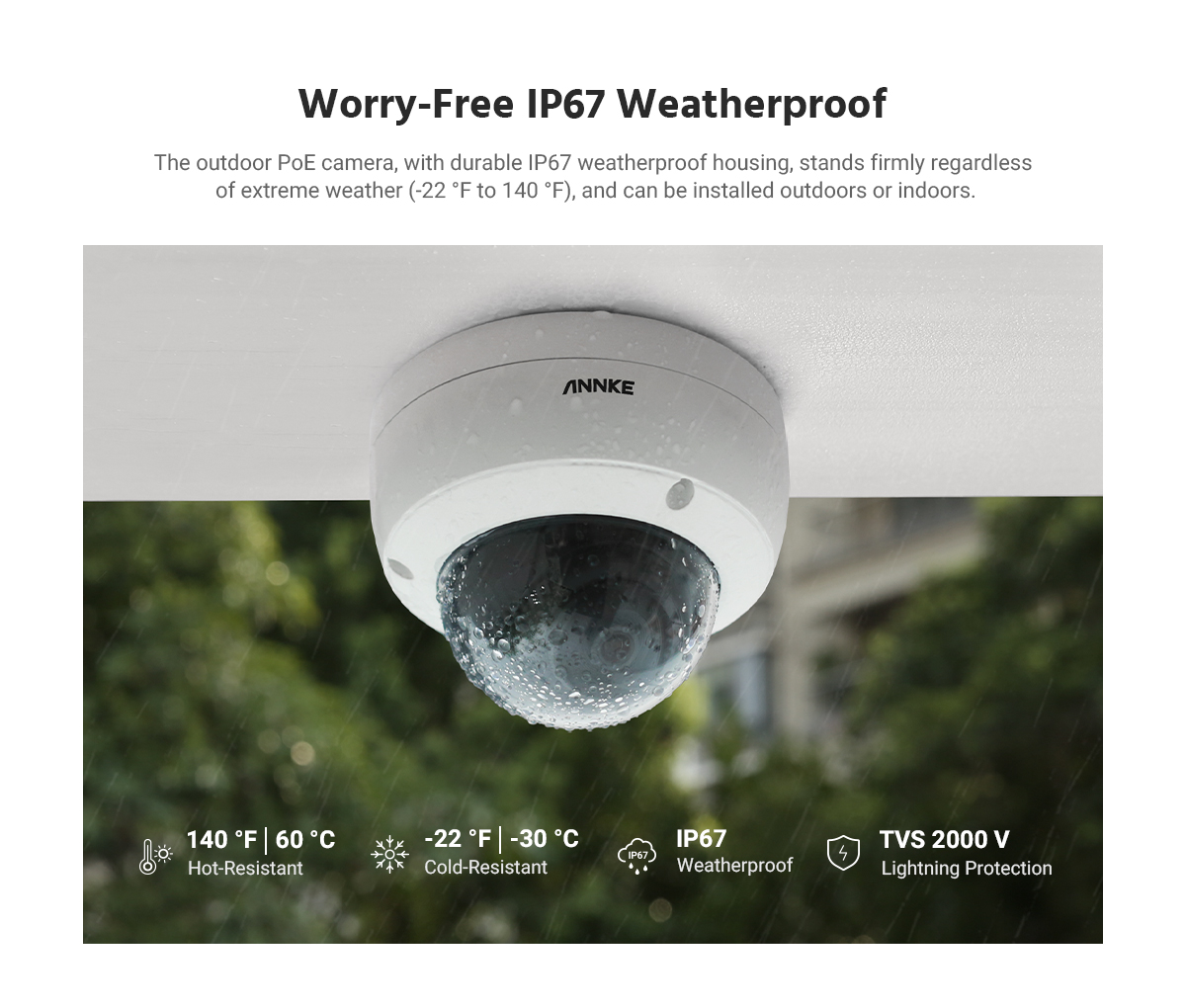

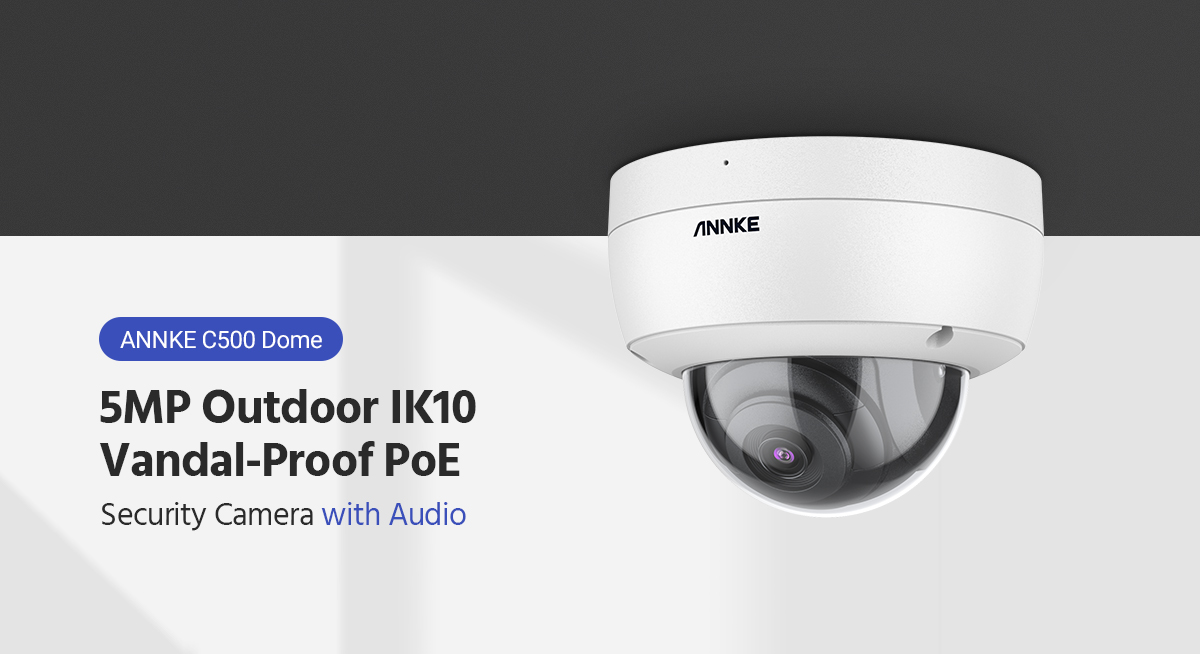

ANNKE 3Camera 3K IR Network Camera System is a comprehensive security solution featuring 8-channel NVR and 3 high-definition IP cameras. With advanced color night vision technology and built-in audio recording capabilities, this system ensures you never miss a moment, day or night. The cameras are designed for outdoor use with IP67 weatherproof ratings, making them resilient against harsh weather conditions.Technical specifications
- Camera Resolution: 5MP Super HD (3072 x 1728)
- Video Compression: H.265+/H.265/H.264+/H.264
- Max Playback Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p (1920 × 1080)
- Audio Input/Output: 1/1 RCA
- Max Recording Capacity: Up to 8 TB HDD
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: -10 °C to +55 °C (14 °F to 131 °F)
- Dimensions (NVR): 315 x 240 x 48 mm (12.4” x 9.4” x 1.9”)
- Weight (NVR): 1 kg (2.2 lbs)
- Camera Dimensions: Ø120 x 92.2 mm (4.72" x 3.63")
- Camera Weight: 270 g (0.6 lb)
Compatibility and accessories
- Connectable to IP cameras supporting H.265+/H.265/H.264+/H.264 coding formats
- Includes 3 IP cameras and 1 NVR
- Power Adapter and User's Manual for NVR included
Installation
- Plug and play setup for easy configuration
- Connect all PoE IP cameras directly to the NVR via Ethernet cables
Usage
- Monitor live video remotely via the "Annke Vision" app on smartphones, tablets, and PCs
- Customizable motion detection settings to minimize false alerts
- Audio recording capability with built-in microphone
