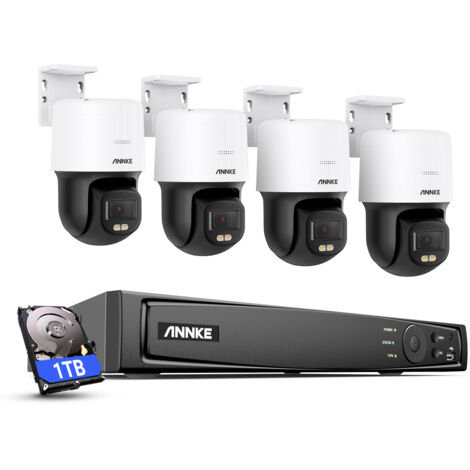

ANNKE 3K Outdoor Security PoE Camera System with Two-way Audio Acme Color Night Vision
Buying for your business?
Negotiated prices excl. VAT up to -20%
You may also like
Compare with similar items
Product information
Description
Key features:
• 1/1.8" Progressive Scan CMOS
• 3K full Color Network Speed Dome with 16:9 image scale
• Built-in microphone and speaker for real-time audio security
• Built-in memory card slot, support microSD card, up to 256 GB
• H.265+, H.265, H.264+, H.264
• DWDR, 3D DNR
• IP66
• 12 VDC and PoE (802.3af)
Description du produi
See Every Detail & True Color, Even at Night
To achieve TRUE acme color night vision, it is necessary to utilize high-quality materials and cutting-edge technologies. The incorporation of advanced technologies such as 1/1.8 BSI sensors, f/1.0 super aperture, ISP (Image Signal Processor), and dual supplemental lights is what enables the production of true color night vision images.
3K High-Resolution with 16:9 Image Scale
This camera is equipped with a 1/8" Progressive Scan BSI CMOS sensor which enables it to capture videos in 3K resolution (3072x1728@20fps) with exceptional clarity and accuracy, showcasing even the slightest details in a realistic manner. The 16:9 image scale is superior to the traditional 4:3 ratio, making it more compatible with the commonly used display ratios.
4 Top-of-the-Line Image Enhancement Technologies
The IP camera adopts 4 incredible image enhancement technologies – DWDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.
Covers More & Sees Wider
This camera has the ability to pan horizontally up to 340° and tilt vertically up to 110°. By controlling it remotely, you can easily modify the camera's angle to capture a broader perspective of the monitored space. Ideal for overseeing extensive locations like parking lots, outdoor areas, and warehouses.
Talk Like You’ re Here
Built-in microphone & speaker allow you to listen and talk back to whoever the camera catches in real time. You can greet your friends with a "Hello!" or warn an unwelcome person to "Get away!" Support filter the environment noise, and record videos with vivid sound.
| Camera | Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max resolution | 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display | |
| Main Stream | 50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20fps(3072*1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Substream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG | |
| Video Bit Rate | 32 Kbps to 8 Mbps | |
| Lens | 2.8 mm@F1.0 | |
| FOV | Horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9° | |
| Supplement Light | Smart white Light, up to 30 m | |
| Min. Illumination | 24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light | |
| Movement Range | Pan:0° to 340°, Tilt: -5° to 105° | |
| Pan Speed | Configurable from 4° to 21°/s | |
| Tilt Speed | Configurable from 4° to 19°/s | |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM | |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC) | |
| Audio Sampling Rate | 8 kHz/16 kHz | |
| Environment Noise Filtering | Yes | |
| Image Enhancement | 3D DNR, BLC, HLC, DWDR | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP | |
| API | Open Network Video Interface Version 18.12 | |
| Audio | Build in microphone & speaker, support 2-way audio | |
| Basic Event | Motion detection, video tampering alarm, exception | |
| General Function | Mirror, password protection, watermark | |
| General | Material | Plastic |
| Color | White & black | |
| Operating Power | 12 VDC ± 25%, 0.75 A, max. 9 W; PoE (802.3af), max. 10 W | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| Storage | Support MicroSD Card (up to 256 GB) | |
| Operating Temperature | -22° to 122° F (-30° to 50° C) | |
| Indoor/Outdoor | Indoor/Outdoor | |
| Protection Level | IP66 | |
| Dimension | 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") | |
| Weight | 780 g (1.7 lb.) |
Features
- BrandANNKE
- ColourWhite
- Weight5000 g
- Power sourceCorded
- With night visionYes
- Intended useOutdoor
- Height6.6 cm
- SpeakerYes
- IP ratingIP66
- InfraredYes
- Width6.8 cm
- MaterialPlastic
- Built-in micYes
- MotorizedYes
- Depth17.8 cm
- Voltage12 V
- Type of cameraSurveillance
- ManoMano ReferenceME97960949
- MMID597144760248
- Product codeAE-N98PBK1-84EM-OP
- EAN286491012948
