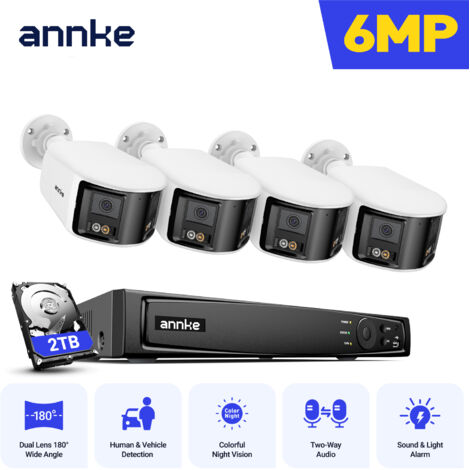

ANNKE 6MP 8 Channel Dual-Lens PoE Security Camera System with 180° Panoramic View 24/7 Recording
You may also like
Compare with similar items
Product information
Description
Key features:
★ High quality imaging with 6 MP resolution
★ One image that presents all the scenes covered by the camera
★ Provide real-time security via built-in two-way audio
★ Efficient H.265+ compression technology
★ Focus on human and vehicle classification based on deep learning
★ Clear imaging against strong back light due to 120 dB WDR technology
★ Active strobe light and audio alarm to warn intruders off
★ Smart Hybrid Light: White light & IR light up to 30 m
★ Support 512 GB TF storage space
★ Water and dust resistant (IP67)
Description du produit
Dual-lens Fusion Splicing 180°Ultra-wide Viewing Angle
The dual-lens camera can intelligently splicing images into a 180-degree video image without dead ends, and maintains the aspect ratio of 20:9. Image fusion technology keeps the brightness and color matching of images highly consistent, showing a perfect spliced image.
Smart Dual-Light Camera with Stunning 6MP Clarity
Powered by dual 1/2.5" high-sensitivity BSI sensors and a 2.8mm@F1.6 lens, this camera delivers sharp 6MP color footage even in low light. The smart dual-light system automatically switches from infrared to white light when it detects people or vehicles—capturing full-color details at night and reverting to IR after the event. With a lighting range of up to 30 meters, it ensures reliable, round-the-clock security.
Smart Detection Motion 2.0, Brings 99% Accurate Alerts
Using an intelligent algorithm based on a deep learning platform, the camera not only supports human and vehicle detection, but also supports line crossing detection, intrusion detection, region entrance detection, region exiting detection.
Pre-Active Defense with Siren & Strobe Deterrence
Supports both sound and strobe light alarms, triggered automatically by events or manually via the mobile app. Choose from 12 built-in alarm sounds or upload your own custom audio for a personalized warning. Effectively deters intruders and enhances real-time response.
Listen & Speak from Any Location
The noise-canceling microphone filters ambient noise and captures voices up to 20 ft away, ensuring HiFi audio. 2-way audio enhances security, letting you communicate with delivery personnel or greet guests. Say “Hi” to your guests – a camera that can see, hear & talk.
Flexible Storage Options for Continuous Protection
This security camera features a built-in TF card slot, supporting up to 512GB Micro SD for loop recording. For expanded storage solutions, the camera also supports NAS and NVR integration, giving you the freedom to choose the storage method that best fits your security setup.
| Camera | Image sensor | 2×1/2.5" Progressive Scan CMOS |
| Max resolution | 3632 × 1632 | |
| Main Stream | 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632) | |
| Sub Stream | 50 Hz:20 fps(1200 × 536, 960 × 432) 60 Hz:20 fps(1200 × 536,960 × 432) | |
| Video compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub Stream: H.265/H.264/MJPEG | |
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| Built-in Microphone | Built-in Microphone, record with audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
| Built-in Speaker | Yes, max. sound pressure: 10 cm: 97 dB | |
| Lens | Dual lens: 2.8 mm | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) | |
| Angle of View | Horizontal FOV: 180°, Vertical FOV: 77° | |
| Supplement Light Type | Smart light, white light, IR light | |
| Supplement Light Range | White light up to 30 m, IR light up to 30m | |
| Motion detection 2.0 | Supoort, include human & vehicle detection | |
| Image Parameters Switch | Yes | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Wide Dynamic Range | 120dB WDR | |
| Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP | |
| API | Support Open Network Video Interface protocol, version 19.12 | |
| Basic Event | Motion detection (support human and vehicle detection), video tampering, exception detection | |
| Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) | |
| Flashing Alarm | White light, frequency adjustable, can be triggered from APP | |
| Region of Interest (ROI) | 1 fixed region for main stream | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| General Function | Rotate, remote access, IP Address Filter | |
| General | Housing | Metal&Plastic, white color |
| Operating Power | PoE (802.3af),max 11.5W, 12 VDC ± 25%,Ø 5.5 mm coaxial power plug, max 10W | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| Storage | Built-in micro SD/SDHC/SDXC slot, up to 512 GB | |
| Hardware Reset | Yes | |
| Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C | |
| Indoor/Outdoor | Indoor/Outdoor | |
| Weatherproof Rating | IP67 | |
| Dimension (L x W x H) | 103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") | |
| Weight | Approx. 560 g (1.2 lb.) |
Features
- BrandANNKE
- Width7.6 cm
- Height23.45 cm
- Voltage12 V
- ColourWhite
