Name: ANNKE 8 Channel PoE Security System with 8 Dome Cameras,Built-in Mic,EXIR 2.0 Night Vision,RTSP Supported - 2TB HDD
Brand: ANNKE
SKU: AK-N48PBB2-58DN02-P
Price: 666.94 GBP
Availability: InStock

Product information

Description

General description

ANNKE 8 Channel PoE Security System is a comprehensive surveillance solution featuring 8 dome cameras equipped with built-in microphones and advanced night vision capabilities. This system is designed to provide high-quality video surveillance with enhanced image clarity and flexibility in recording options.

Technical specifications

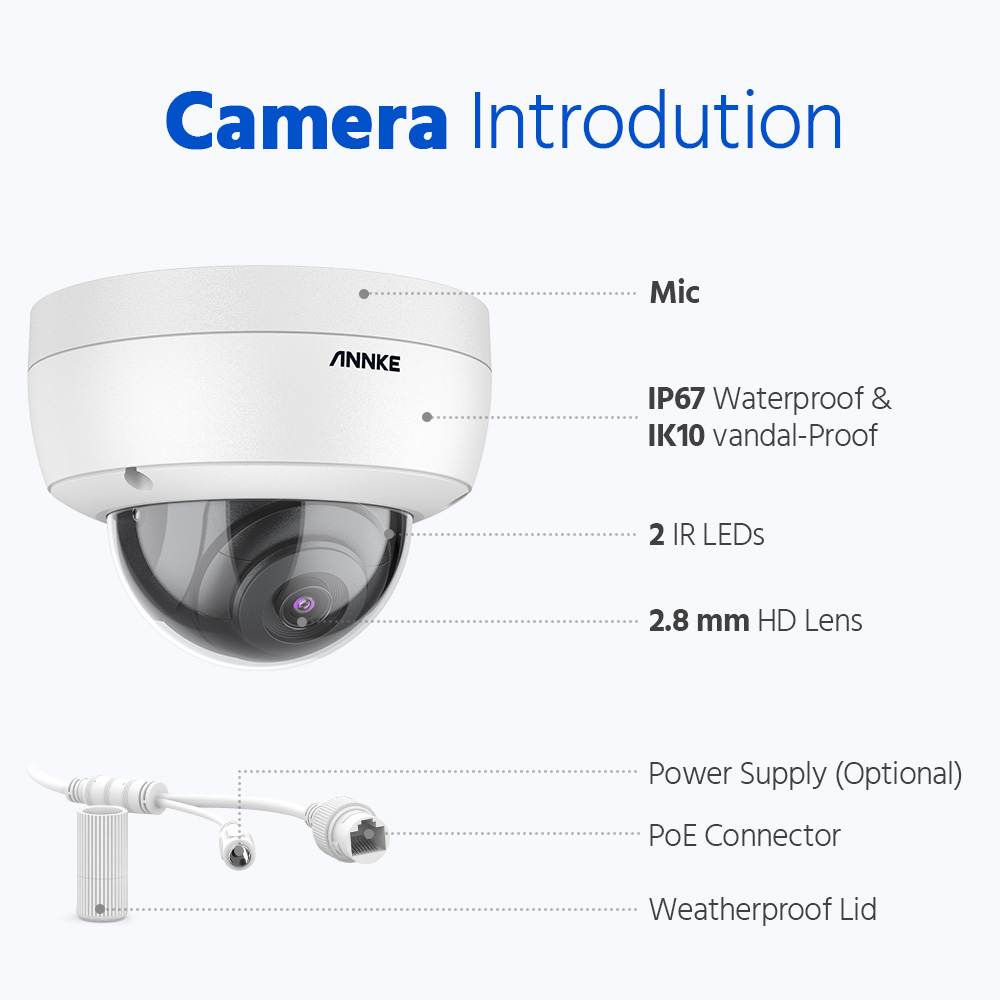

Camera Image Sensor: 1/3" Progressive Scan CMOS

Max Resolution: 3K (3072*1728), 16:9 aspect ratio

Main Stream: 50 Hz: 20 fps (3072*1728), 25 fps (1920 X 1080, 1280 X 720); 60 Hz: 20 fps (3072*1728), 24 fps (1920 X 1080, 1280 X 720)

Substream: 50 Hz: 25 fps (1280 X 720, 640 X 480, 640 X 360); 60 Hz: 24 fps (1280 X 720, 640 X 480, 640 X 360)

Video Compression: H.265+/H.265/H.264+/H.264

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Lens: 2.8 mm

Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Night Vision Distance: Up to 100 ft/30 m

Operating Power: DC 12 V± 25%, max 5 W; PoE (802.3af), max 6.5 W

Operating Temperature: -22 °F – 140 °F / -30 °C – 60 °C

Dimension (L X W X H): Ø120 × 92.2 mm (4.72" × 3.63")

Weight: 0.6 lb / 270 g

Compatibility and accessories

Supports up to 8 IP cameras with built-in PoE inputs

Expandable storage up to 6TB

Includes: NVR, USB Mouse, Power Adapter, 1M Network Cable, 1.8M HDMI Cable, User's Manual for NVR

Installation

Installation involves connecting the cameras to the NVR using PoE technology, which simplifies the wiring process by allowing power and data to be transmitted over a single cable. Ensure the cameras are positioned for optimal coverage and connect the NVR to a monitor for setup.

Usage

The ANNKE security system can be used for continuous recording, scheduled recording, or motion-detected recording. Users can customize recording settings for each camera based on activity levels in different areas.
