Antenna Analyzer, 1-60 MHz HF ANT SWR Antenna Analyzer Standing Wave Tester for Amateur Radio Impedance and Capacitance Measurement
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description

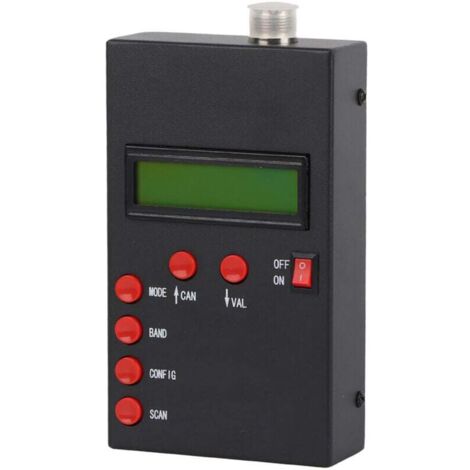

This is an SWR analyzer designed for ham radio enthusiasts. This device allows you to measure various electrical parameters of the antenna, such as SWR, impedance (resistance + reactance), capacitance, inductance, feed point impedance, and ground loss. With its 5 control buttons, you can easily select the operating mode, band, and access extended functions.Technical Specifications
- Frequency Range: 1 to 60 MHz
- Source Impedance: 50 ohms
- Stability: +/- 100 ppm
- Purity: Harmonics down > TBD dB above 60 MHz
- Usable SWR measurement range: 1.0 to 9.99
- Measurable impedance: approximately 5 to 2000 ohms
- RF output: adjustable 2.0 volts pp (typ)
- Power supply: external 12 to 14 V DC, 500 mA
- Dimensions: 150 x 90 x 40 mm
Compatibility and accessories
- Connectors: RF USB - mini-B connector
- External power supply: 2.1 mm jack (center positive pin)
Installation
- Connect the external 12 to 14 V DC, 500 mA power supply via the 2.1 mm jack mm
Usage
- Mode: Select the operating mode, impedance (default), complex impedance, capacitance, and inductance
- Band: Choose from available bands, from 160 µm to 6 µm
- Configuration: Access a menu for configurations and extended functions, PC connection, step size adjustment, timeout adjustment, calibration, and software upgrade
- SCAN: Initiates a frequency scan of the selected band
- CAN (up): Increases the frequency
- VAL (down): Decreases the frequency
Other Information
- Package Contents: Analyzer (power supply not included)
- Design: Stylish black case to protect the analyzer from external damage
Features
- BrandTEHTUY
- Length15 cm
- Width9 cm
- Height4 cm
- Display modeDigital
