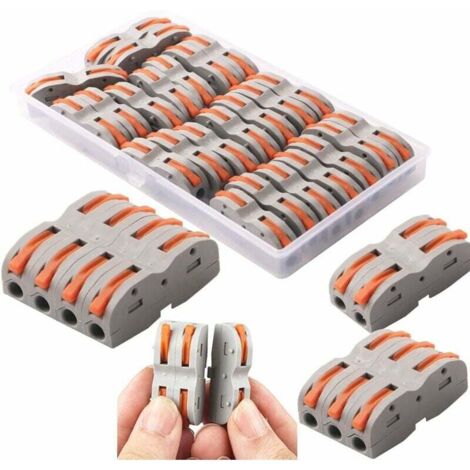

Automatic Connection Terminals, (24pcs) Quick Cable Connectors, Lever Nut Connectors, Conductor Assortment Compact Cable Connectors SPL-1

(£11.19/pc)

~~£16.79~~

Of which environmental contribution £0.10 including VAT.

Product out of stock

Product information

Description

General description

This product includes 24 pieces of Automatic Connection Terminals, also known as Quick Cable Connectors or Lever Nut Connectors. They are designed for easy and quick wiring without the need for tools, significantly reducing installation time. These connectors are suitable for solid, stranded, and flexible cables, making them versatile for various applications.

Technical specifications

Voltage range: 0.75 to 4 mm²

Maximum Voltage: 400V

Maximum Current: 32A

Dimensions: 39mm x 18mm x 8mm

Rated voltage: 250V / 4kV

Rated power: 7kW

Applicable wire sizes: 0.08-2.5 mm² (AWG 28-14) for solid copper wire; 1.5-2.5 mm² (AWG 16-14) for stranded hard copper wire; flexible copper wires from 0.08 to 4 mm² (AWG 28 to 12)

Conductor material: electrolytic copper with tin plating

Clamping spring material: high alloy chrome-nickel steel

Shell material: flame retardant plastic

Installation

Open the cable housing to 9-10mm.

Push the orange lever to 90° and connect the cables.

Press the lever to close the clamp.

Usage

This connector is ideal for various applications including ceiling fans, outlets, switches, cars, motorcycles, boats, speakers, lamps, electrical boxes, chandeliers, and fan controls. It is designed for indoor use only and should not be used in humid or wet environments.

Other information

Spring clamp technology ensures a reliable connection that will not fall off.

Electrolytic copper internal material with a special surface coating to prevent oxidation, providing low resistivity and better conductivity.

Easy assembly and disassembly for quick connections.

This product effectively prevents electric leakage.

Features

Brand
ERHOPE
Warranty
2 year(s)
Pcs per pack
1
Colour
Multicolour
Amperage
32 A
Width
38.6 mm
Length
8.6 mm
Material
Plastic
Weight
200 g
Type of connection
Screw-in
Connection type
Self-Connecting
ManoMano Reference
ME75415391
MMID
390266486410
Product code
MMES2-4-230621-2047
EAN
7324589031099
