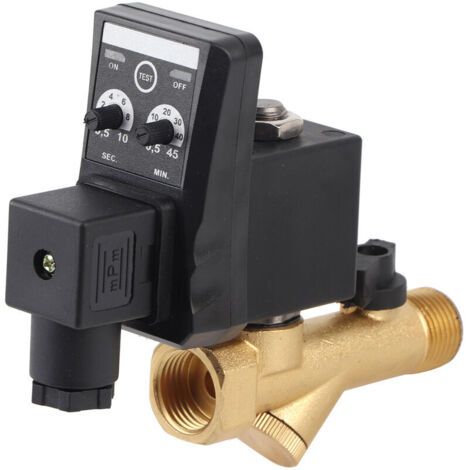

Automatic electronic timed drain valve G1/2 DN15 for air compressor condensate (AC230V)
You may also like
Compare with similar items
Product information
Description
General Description
The G1/2 DN15 automatic electronic timed drain valve is designed for air compressor condensate. It is a reliable, high-quality device that ensures the proper functioning of compressed air treatment equipment. This valve can be programmed to drain condensate at specific intervals, thus optimizing compressed air usage.
Technical Specifications
Voltage: AC110V, AC230V (optional)
Type: Integrated
Valve Material: Brass
Operating Modes: Direct Acting Interval (OFF): 0.5 to 45 min
Discharge Time: 0.5 to 10 sec
Thread: G1/2 (DN15)
Thread Outer Diameter: approx. 21 mm
Pressure: 0-1.6 MPa
Fluid: Air, Water
Fluid Temperature: -5℃~80℃
Fluid Direction: Unidirectional
Compatibility and Accessories
G1/2 Thread, compatible with most air compressors
Installation
Easy installation thanks to the standard G1/2 thread
Operation
Automatic operation for efficient condensate drainage
Adjustable valve opening time from 0.5 to 10 seconds
Adjustable closing time from 0.5 to 45 minutes
Other Information
The AC230V model can also be connected to AC220V
The product may be sent under a new or old type at random
Features
- BrandXISRENS
- Width10 mm
- Height10 mm
- MaterialBrass
- Compressor accessory typeValve
