Automatic transfer switch 2P 100A – Voltage 230V – Breaking capacity 6kA – Rail mounting – Lifespan 10,000 cycles – 2P100A
You may also like
Compare with similar items
Product information
Description
General Description

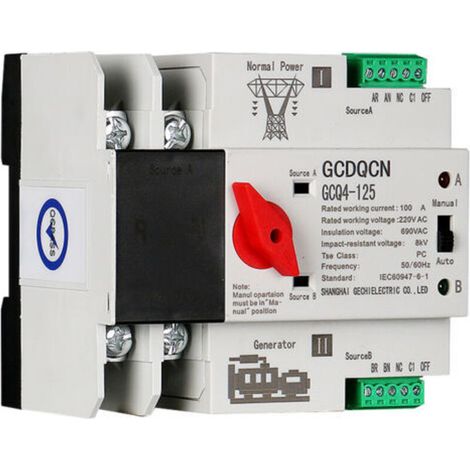

The GCQ4-125 dual-power automatic transfer switch is designed to ensure uninterrupted power supply through its ability to switch between two power sources. It is ideal for domestic and industrial applications where reliable power is crucial.
Technical Specifications
- Model: GCQ4-125
- Frame Current: 100 A
- Rated Current: 100 A
- Number of Poles: 2P
- Breaking Capacity: 6 kA
- Product Quality: PC Grade
- Product Type: Transfer Switch
- Product Series: Dual Power Automatic Transfer Switch
- Rated Voltage: 230 V
- Wiring Method: Two Inputs and One Output
- Dimensions: 107 x 96 mm
- Installation Method: DIN Rail Mount
- Installation Size: 107 x 96 mm
- Weight: 0.5 kg
- Electrical Life: 10,000 cycles
- Mechanical Life: 10,000 cycles
- 3C Certificate Number: 2020960305000654
- Product Certification: CE/CQC/CCC
Compatibility and Accessories
This switch is compatible with various electrical systems that require redundant power supplies. Be sure to check your installation specifications for optimal integration.
Installation
Installing the GCQ4-125 is quick and easy. It can be mounted on a rail, thus facilitating its integration into standard electrical panels.
Use
The transfer switch is primarily used to automatically switch between two power sources, thus ensuring continuity of service in the event of a failure of one of the sources.
Other information
For optimal operation, it is advisable to follow the wiring and installation instructions provided by the manufacturer.
Features
- BrandOTHERS
- ColourWhite
- IP ratingIP65
- Amperage10 A
- MaterialPlaster
- Type of electrical installationSurface mounted
- Power25 W
- Voltage230 V
- ManoMano ReferenceME220693823
- MMID296253829828
- Product codeBT-UK2025YS-55648
- EAN9140747170480
