Automotive Actuator Fault Detector, QDB 2A Automotive Actuator Fault Detector 12 to 24V for Fuel Injector Solenoid Valve Detection and Ignition Coil

General Description

The QDB 2A Automotive Actuator Fault Detector is a versatile tool designed to test various automotive components such as ignition coils, fuel injectors, and solenoid valves. It offers high-precision simulation and enhanced safety features, making it easy to use even for users without advanced technical knowledge.

Technical Specifications

• Name: Ignition Coil Tester
• Material: ABS
• Input Power: 9-26V/100W
• Output Power: Max. Current 2.5A
• VADJ Output: 1.25-14.5V, Max. Current 1.5A
• PWM drive: frequency 1-100KHz, duty cycle 0-100%, max. current 3A
• PWM signal: frequency 1-100KHz, duty cycle 0-100%, 1.25-14.5V PP
• Stepper motor: max. 1.5A
• OTR: 0-55℃
• Item Size: 165*96*26 mm (6.50*3.78*1.02 inches)
• Package Size: 150*100*60 mm (5.91*3.94*2.36 inches)
• Package Weight: 550 g (1.21 lb)

Compatibility and Accessories

• Compatible with: solenoid valves, ignition coils, solenoid injectors, idle speed stepper motors, urea pump stepper motors

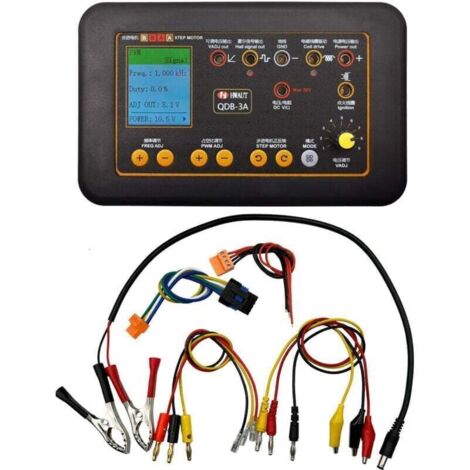

• Package List: 1* QDB-A3 Ignition Coil Tester, 1* Power Cable, 3* Test Connection Leads, 3* Single Plugs, 1* Speed Stepper Motor Plug Idle speed, 1* Stepper motor welding cable

Installation

• Easy to install with simple connections for each type of test

Use

• Allows you to drive and test various automotive components
• Easy settings to adapt tests to specific needs
• Accurate simulation of duty cycle sensors
